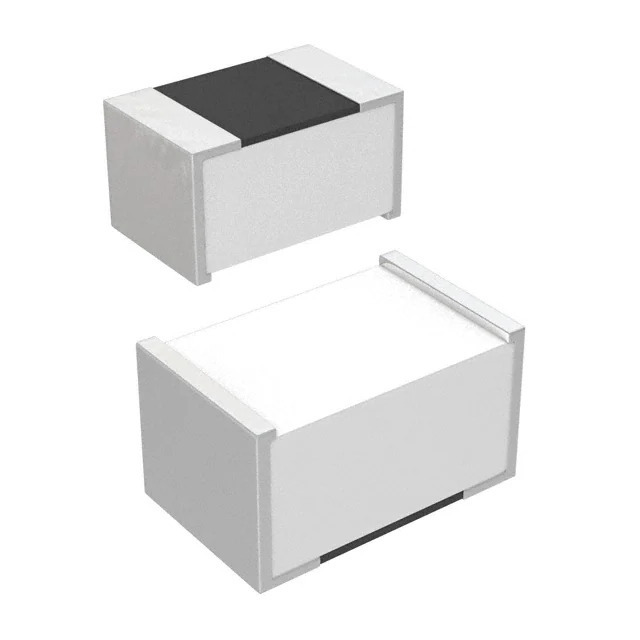

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRF
Package Tape & Reel
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Metal Foil
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375111-CSRF0402FT10L0
Ultra Librarian 3D Model Ultra Librarian CSRF0402FT10L0 CAD Model

Description

The CSRF0402FT10L0 is a chip resistor from Stackpole Electronics Inc.

  • Type: Current Sense Resistor
  • Resistance: 10 MOhms
  • Power Rating: 0.125W
  • Mounting: Surface Mount
  • Package: 0402 (1005 Metric)
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Series: CSRF
  • Application: Automotive AEC-Q200
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • Failure Rate: -
  • Packaging: Tape and Reel
