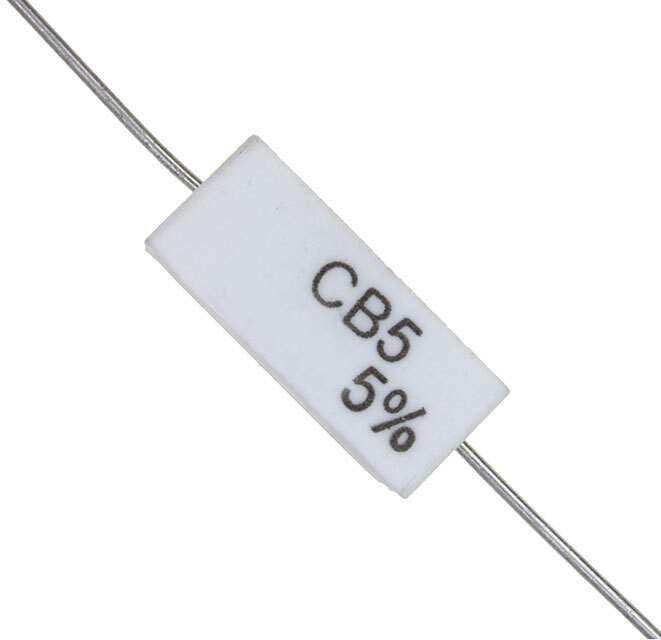

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Series CB
Packaging Bulk
Resistance (Ohms) 470
Tolerance ±5%
Power (Watts) 10W
Composition Wirewound
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±200ppm/°C
Operating Temperature Range -55°C ~ 275°C
Package Axial
Manufacturer Package Axial
Dimension 0.374" Square x 1.890" L (9.50mm x 48.00mm)
Number of Terminations 2
Win Source Part Number 769418-CB10JB470R
Popularity Medium
Supply and Demand Status Limited
Family Name CB
Introduction Date May 20, 2000
ECCN EAR99
Country of Origin China, Mexico
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CB10JB470R CAD Model

Description

The Stackpole Electronics Inc. CB series resistor is a wirewound resistor that comes with 10W power and 470 Ohms resistance.

  • Features: Flame-proof, Moisture-Resistant
  • Package: Axial
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Terminations: 2
  • Family: CB
  • Applications: Lighting, Power Supply, Automotive
  • Dimensions: 0.374" Square x 1.890" L (9.50mm x 48.00mm)
  • Packaging: Bulk
  • Manufacturing Locations: China, Mexico
  • Estimated EOL Date: 2026
