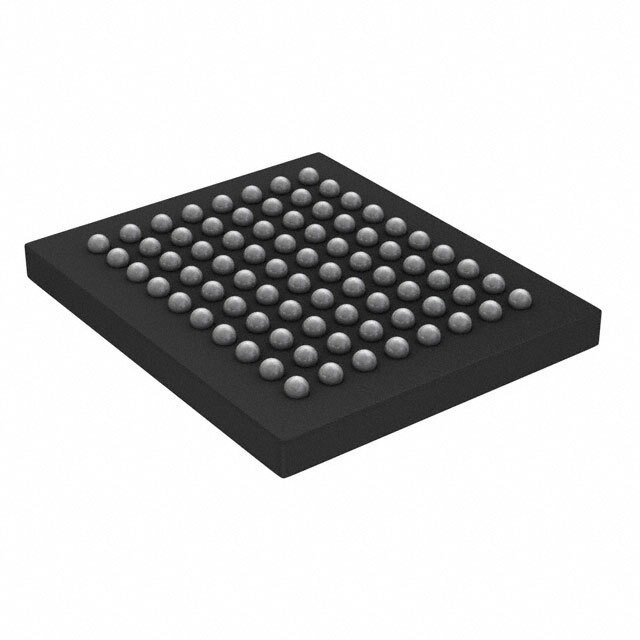

Same model may have multiple batches, images only for reference.

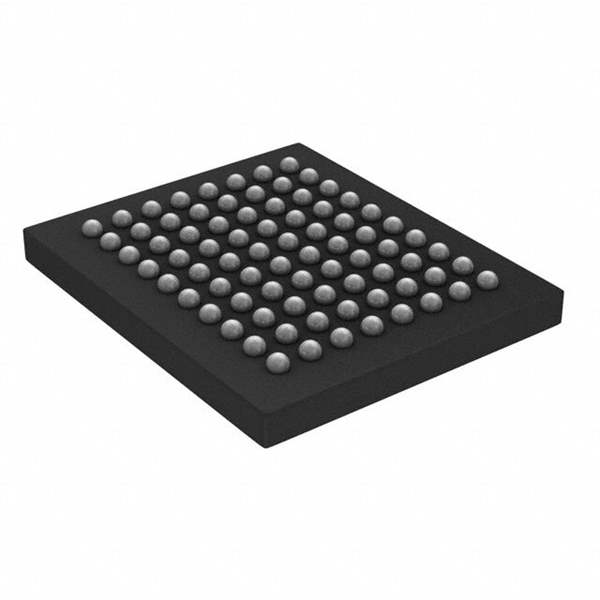

S29CD016J1MFAM112 Spansion
Same model may have multiple batches, images only for reference.

S29CD016J1MFAM112

Part No S29CD016J1MFAM112
Manufacturer Spansion
Catalog Flash
Description IC FLASH 16MBIT PARALLEL 80FBGA / FLASH - NOR Memory IC 16Mb (512K x 32) Parallel 56 MHz 54 ns 80-FBGA (13x11)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Spansion
Series CD-J
Package Bulk
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (512K x 32)
Memory Interface Parallel
Clock Frequency 56 MHz
Write Cycle Time - Word, Page 60ns
Access Time 54 ns
Voltage - Supply 1.65V ~ 2.75V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 80-LBGA
Supplier Device Package 80-FBGA (13x11)
RoHS Status Not applicable
ECCN EAR99
HTSUS 0000.00.0000
Other Names 2156-S29CD016J1MFAM112-SPTR-ND,CYPSPAS29CD016J1MFAM112,2156-S29CD016J1MFAM112
Standard Package 1
Win Source Part Number 1022336-S29CD016J1MFAM112
Ultra Librarian 3D Model Ultra Librarian S29CD016J1MFAM112 CAD Model

Description

The S29CD016J1MFAM112 from Spansion is a 16Mb non-volatile memory chip that uses NOR flash technology.

  • Memory Size: 512K x 32
  • Access Time: 54 ns
  • Operating Voltage: 1.65V to 2.75V
  • Package: 80-LBGA
  • Clock Frequency: 56 MHz
  • Write Cycle Time: 60ns
  • Memory Interface: Parallel
  • ECCN: EAR99
