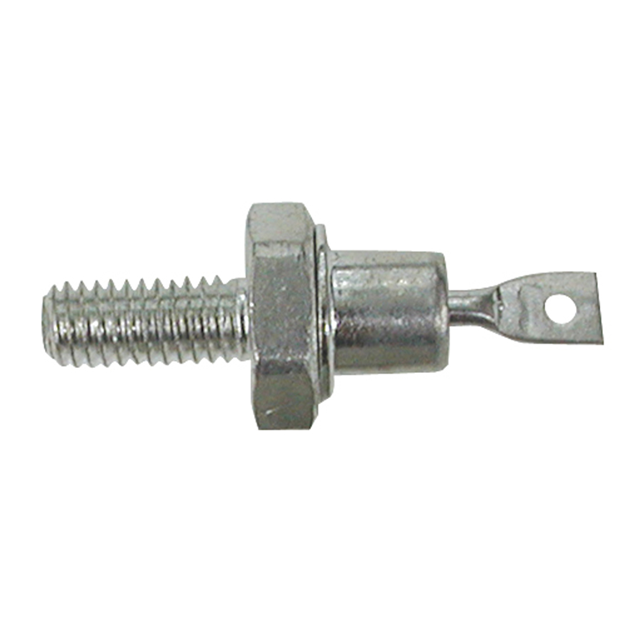

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Rectifiers>Single Diodes
Mfr Solid State Inc.
Series -
Package Bulk
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 25 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 1200 V
Capacitance @ Vr, F -
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 10 pcs
Win Source Part Number 1380705-25F120
Ultra Librarian 3D Model Ultra Librarian 25F120 CAD Model

Description

The 1380705-25F120 is a single diode rectifier from Solid State Inc. It is a standard recovery diode with a voltage rating of 1200V and an average rectified current of 25A. The diode has a speed of >500ns and >200mA (Io). It has a forward voltage of 1.2V at 25A and a reverse leakage current of 10μA at 1200V. The 1380705-25F120 is designed for stud mount applications and comes in a DO-203AA, DO-4, Stud package. It has an ECCN classification of EAR99 and is supplied in bulk packaging with a standard package of 10 pcs. The diode has a moisture sensitivity level of 1 (unlimited) and is unaffected by REACH regulations.
