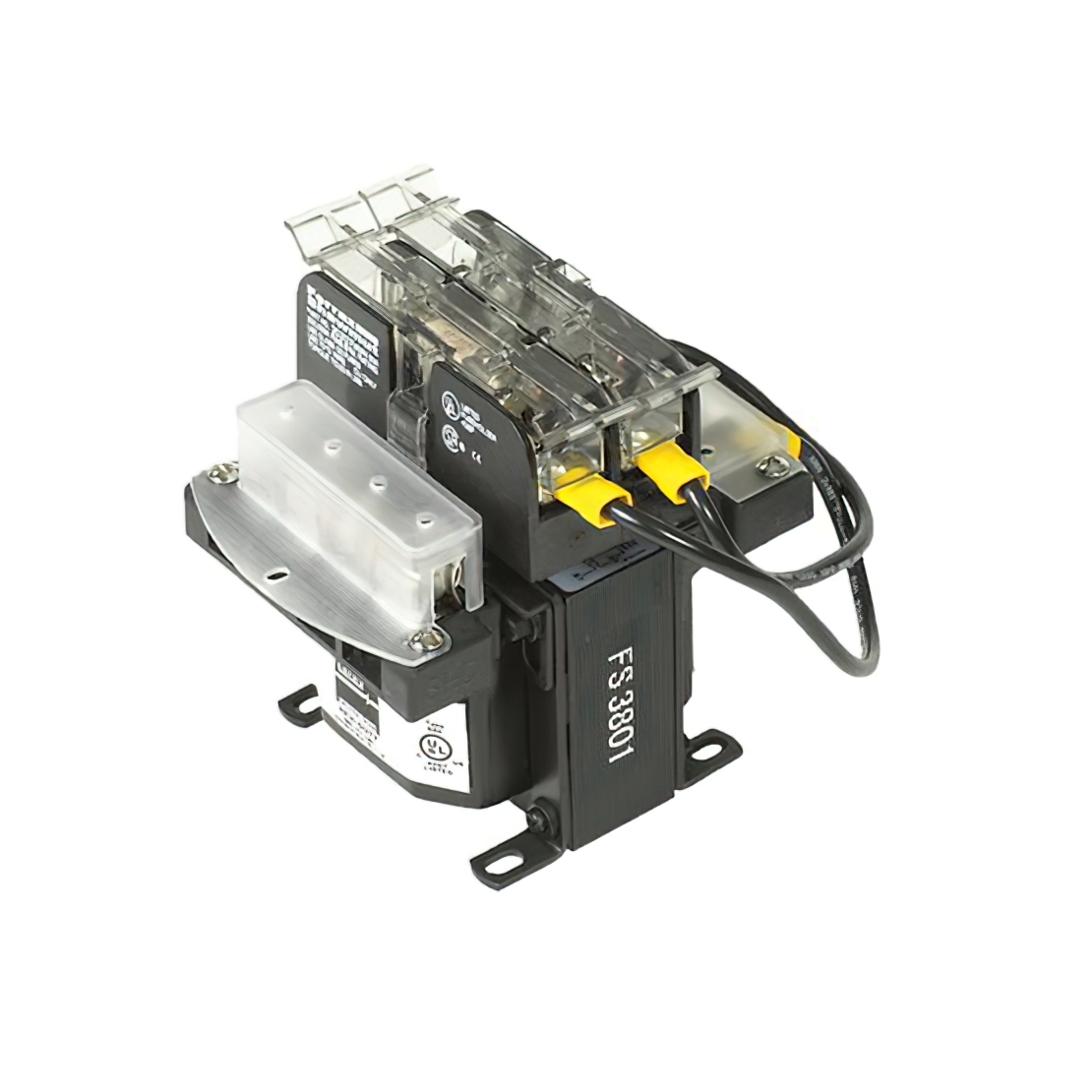

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Primary Winding(s) Single, Multiple Taps
Secondary Winding(s) Dual
Center Tap No
Power - Max 100VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 114.30mm L x 113.80mm W
Height - Seated (Max) 98.80mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545128-E100TH
Ultra Librarian 3D Model Ultra Librarian E100TH CAD Model
