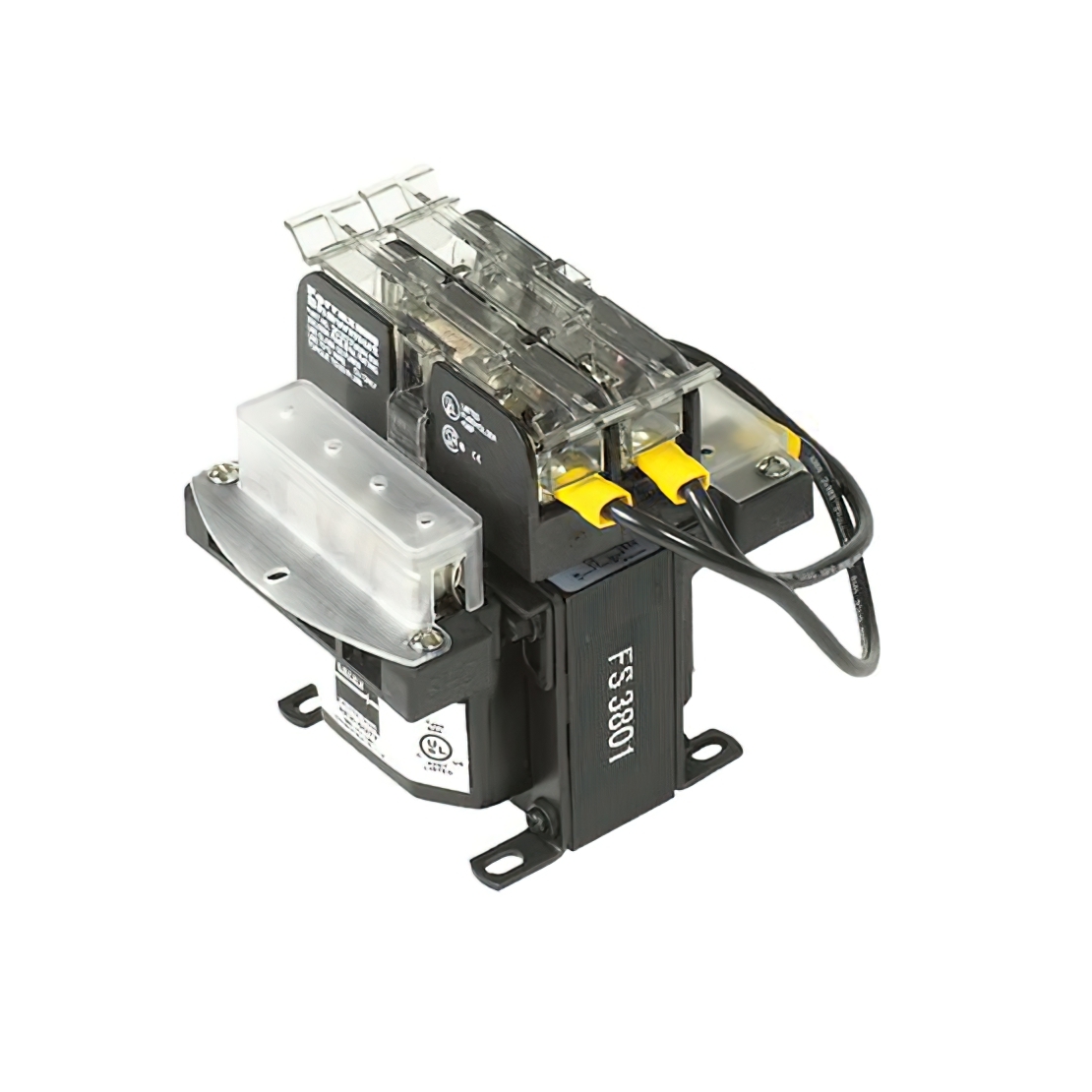

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 240V, 480V
Voltage - Secondary (Full Load) 24V
Primary Winding(s) Dual
Secondary Winding(s) Single
Center Tap No
Power - Max 50VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 101.30mm L x 76.50mm W
Height - Seated (Max) 69.10mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545142-E050D
Ultra Librarian 3D Model Ultra Librarian E050D CAD Model
