The MBR40100WT is a Schottky Barrier Rectifier manufactured by SMC Diode Solutions. It is designed for high-efficiency rectification and fast switching applications. This device is commonly used in power supplies, inverters, and as a free-wheeling diode in inductive circuits.

Applications

• Switching Power Supplies: Used as a rectifier to convert AC to DC with high efficiency.
• High-Frequency Inverters: Employed in inverters to provide fast switching and low forward voltage drop.
• DC-DC Converters: Used for voltage conversion in DC-DC converter circuits.
• Polarity Protection Applications: Implemented to protect circuits from reverse polarity connections.
• Free-Wheeling Diode in Inductive Loads: Provides a path for current flow when an inductive load is switched off, preventing voltage spikes.
• Solar Power Systems: Used in solar panel systems for efficient power conversion.

Features

• High Surge Current Capability: Can withstand high surge currents, making it suitable for demanding applications.
• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High Switching Speed: Offers fast reverse recovery time for efficient switching.
• Guard Ring for Transient Protection: Provides protection against voltage transients.
• High Junction Temperature Capability: Can operate at high junction temperatures.
• RoHS Compliant: Complies with RoHS standards for environmental protection.
• Halogen-Free: Does not contain halogenated compounds.

Benefits

• Improved Efficiency: Low forward voltage drop and fast switching speed enhance the efficiency of power conversion.
• Enhanced Reliability: High surge current capability and transient protection ensure reliable operation.
• Reduced Power Loss: Minimizes power dissipation in rectification applications.
• Wide Range of Applications: Suitable for diverse applications due to its robust features.
• Environmental Compliance: RoHS compliant and halogen-free for environmental sustainability.
• Protection Against Voltage Spikes: Protects circuit components from damage caused by inductive voltage spikes.

Additional Details

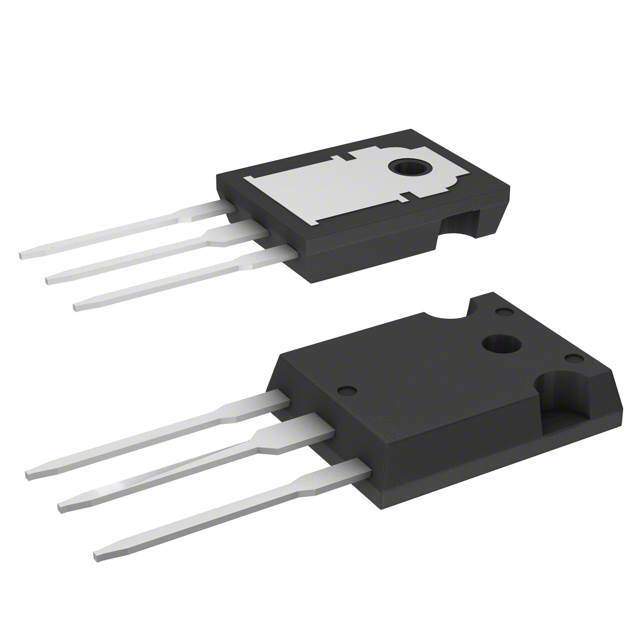

The MBR40100WT comes in a TO-247 package. It has a maximum repetitive peak reverse voltage of 100V and a maximum average forward rectified current of 40A. The operating temperature range is typically -65°C to +150°C. The forward voltage drop is typically around 0.85V at the rated current. This Schottky Barrier Rectifier is a reliable and efficient solution for various power electronics applications.
