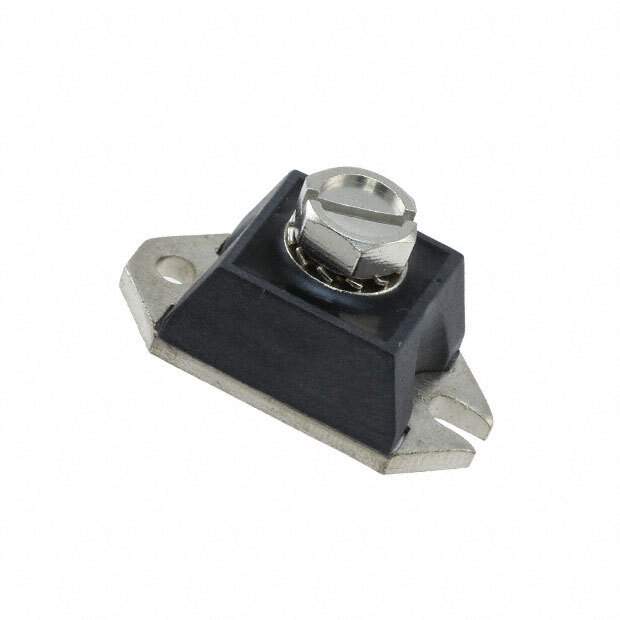

183NQ080-1 Real Image
Same model may have multiple batches, images only for reference.

183NQ080-1

Part No 183NQ080-1
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 80V 180A PRM1-1
Datasheet
183NQ080-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 80V
Current - Average Rectified (Io) 180A
Voltage - Forward (Vf) (Maximum) @ If 950mV @ 180A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 4.5mA @ 80V
Capacitance @ Vr, F 4150pF @ 5V, 1MHz
Mounting Chassis Mount
Package HALF-PAK
Manufacturer Package PRM1-1 (Half Pak Module)
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number 760702-183NQ080-1
Popularity Medium
Supply and Demand Status Limited
Family Name 183NQ080-1
Introduction Date December 01, 2012
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 183NQ080-1 CAD Model

Description

The SMC Diode Solutions 760702-183NQ080-1 is a discrete semiconductor product that belongs to the 183NQ080-1 family.

  • Type: Schottky diode
  • Current - Average Rectified (Io): 180A
  • Current - Reverse Leakage @ Vr: 4.5mA @ 80V
  • Package Type: HALF-PAK
  • Mounting Type: Chassis Mount
  • Voltage - Forward (Vf) (Maximum) @ If: 950mV @ 180A
  • Voltage - DC Reverse (Vr) (Maximum): 80V
  • Capacitance @ Vr, F: 4150pF @ 5V, 1MHz
  • Operating Temperature - Junction: -55°C to 175°C
  • Introduction Date: December 01, 2012
  • Estimated EOL Date: 2025
