123NQ080R-1 SMC Diode Solutions – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

123NQ080R-1

Part No 123NQ080R-1
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single

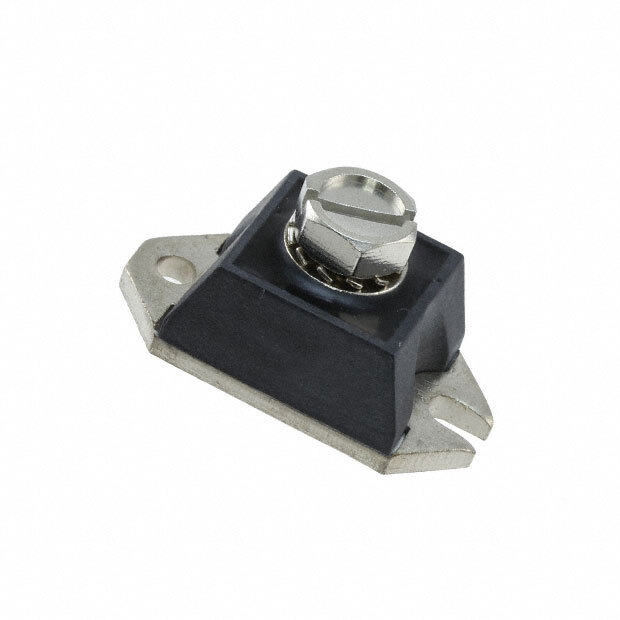

Description Diode 80 V 120A Chassis Mount PRM1-1 (Half Pak Module)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr SMC Diode Solutions
Packaging Bulk
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 120A
Voltage - Forward (Vf) (Max) @ If 910 mV @ 120 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 3 mA @ 80 V
Capacitance @ Vr, F 2650pF @ 5V, 1MHz
Mounting Type Chassis Mount
Package / Case HALF-PAK
Supplier Device Package PRM1-1 (Half Pak Module)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number 123NQ
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1480631-123NQ080R-1
Ultra Librarian 3D Model Ultra Librarian 123NQ080R-1 CAD Model
