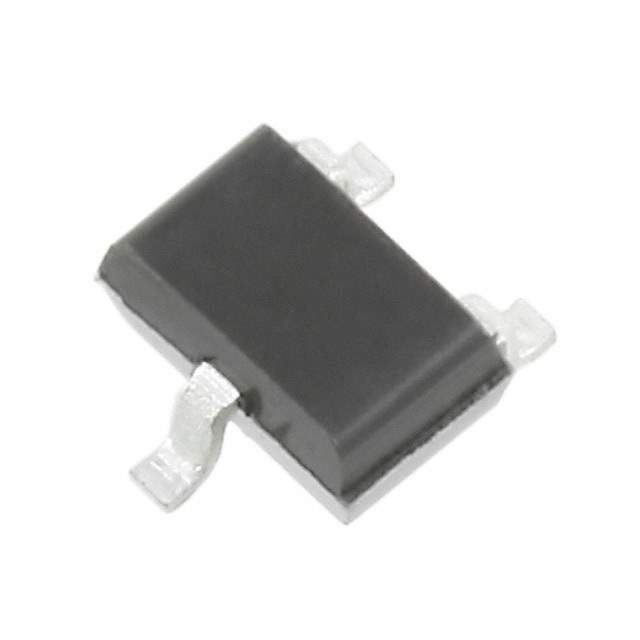

The SMP1321-075 from Skyworks Solutions Inc. is a silicon PIN diode designed for high-performance switch and attenuator applications. This diode features low insertion loss, high isolation, and excellent intermodulation distortion performance, making it suitable for use in a variety of RF and microwave systems.

Applications

• Cellular base stations: Used in transmit/receive switches and attenuators to control signal paths.
• Wireless infrastructure: Employed in infrastructure equipment to improve signal quality and manage power levels.
• Test and measurement equipment: Utilized in RF test equipment for signal routing and calibration purposes.
• Satellite communication systems: Found in satellite transceivers for switching and attenuating signals.
• Radar systems: Used in radar front-end modules to control signal flow and protect sensitive components.

Features

• Low insertion loss: Minimizes signal attenuation, ensuring efficient signal transmission.
• High isolation: Provides excellent signal separation, preventing unwanted signal leakage.
• Fast switching speed: Enables rapid switching between different signal paths.
• Low capacitance: Reduces capacitive loading, improving high-frequency performance.
• Surface mount package: Facilitates easy integration into compact circuit designs.

Benefits

• Improved system performance: Low insertion loss and high isolation contribute to enhanced signal quality and reduced signal distortion.
• Increased system reliability: Robust design ensures stable performance under varying operating conditions.
• Simplified circuit design: Surface mount package simplifies assembly and reduces board space requirements.
• Enhanced flexibility: Fast switching speed allows for dynamic control of signal paths.
• Cost-effective solution: Provides excellent performance at a competitive price point.

Additional Details

The SMP1321-075 is housed in a small surface-mount package, making it suitable for high-density circuit board layouts. It is designed to operate over a wide frequency range, typically from 10 MHz to several GHz. The diode's low capacitance and series resistance contribute to its excellent high-frequency performance. It requires a bias voltage to control its switching state, and the appropriate bias circuitry should be designed to ensure optimal performance.

Technical Specifications:

• Breakdown Voltage: Typically 50V
• Capacitance @ -1V: Typically 0.4 pF
• Series Resistance @ 10mA: Typically 1.5 Ohms
• Operating Temperature: -65°C to +150°C
