Same model may have multiple batches, images only for reference.

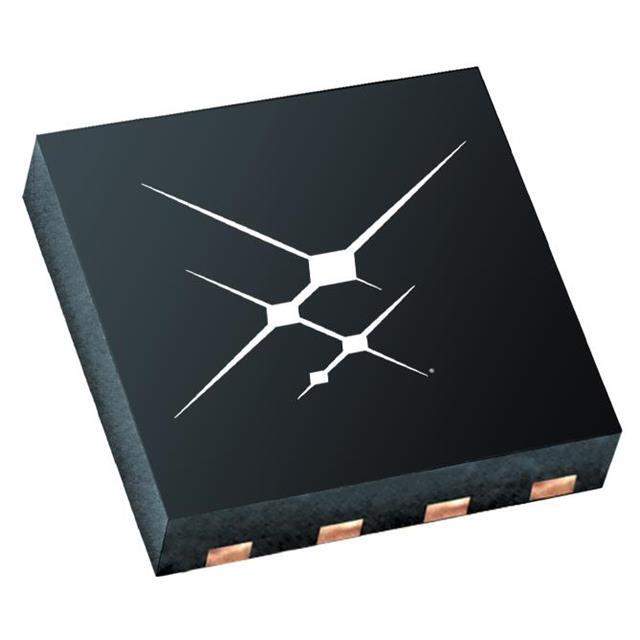

SI8711BD-B-IM Real Image
Same model may have multiple batches, images only for reference.

SI8711BD-B-IM

Part No SI8711BD-B-IM
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description DGTL ISO 5000VRMS 1CH GP 8LGA / General Purpose Digital Isolator 5000Vrms 1 Channel 15Mbps 35kV/µs CMTI 8-VELGA
Datasheet
SI8711BD-B-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Skyworks Solutions Inc.
Package Tube
Product Status Obsolete
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Data Rate 15Mbps
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 20ns
Rise / Fall Time (Typ) 15ns, 5ns
Voltage - Supply 3V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-VELGA
Supplier Device Package 8-LGA (10x12.5)
Other Names 336-2369,SI8711BDBIM
Standard Package 96
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243909-SI8711BD-B-IM
Ultra Librarian 3D Model Ultra Librarian SI8711BD-B-IM CAD Model

Description

The SI8711BD-B-IM is a general-purpose isolator from Skyworks Solutions Inc.

  • Type: Unidirectional isolator
  • Data Rate: 15Mbps
  • Technology: Capacitive coupling technology
  • Voltage Isolation: 5000Vrms
  • Common Mode Transient Immunity: 35kV/μs
  • Propagation Delay (Max): 60ns
  • Temperature Range: -40°C to 125°C
  • Package: 8-VELGA
