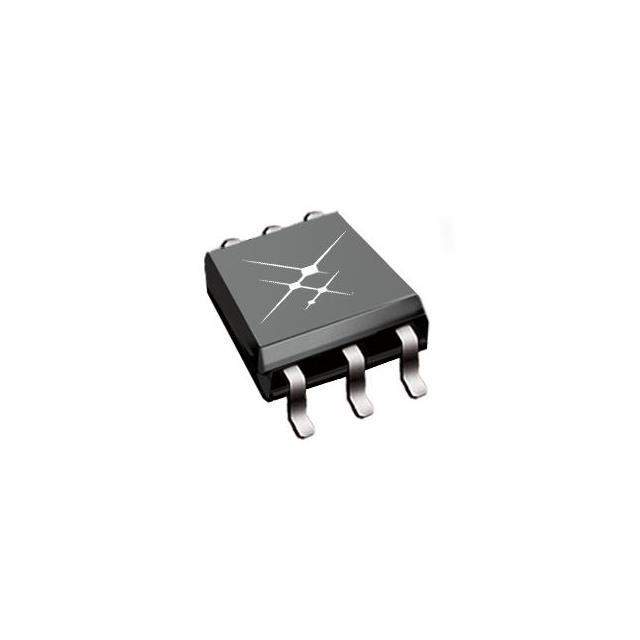

The SI8710BD-B-ISR is an isolated FET driver from Skyworks Solutions Inc., designed to drive power MOSFETs or IGBTs in a variety of applications requiring galvanic isolation. This device integrates robust isolation technology with high drive strength, making it suitable for use in demanding industrial, automotive, and power supply applications. It ensures efficient and reliable switching while protecting control circuitry from high-voltage transients.

Applications

• Isolated Power Supplies: Used to drive MOSFETs in power supplies, DC-DC converters, and inverters, providing isolation between the control and power stages.
• Motor Drives: Integrated into motor control systems to drive IGBTs and MOSFETs, providing precise motor control and isolation from high-voltage circuits.
• Solar Inverters: Used in solar inverters to drive power transistors, ensuring efficient conversion of solar energy to AC power.
• Welding Equipment: Provides isolated gate drive for power devices in welding machines, enhancing safety and performance.
• Industrial Automation: Employed in industrial automation systems to drive actuators, valves, and other electromechanical devices requiring isolation.

Features

• Integrated Isolation: Provides robust galvanic isolation between the input and output, enhancing safety and preventing ground loops.
• High Drive Strength: Capable of driving high-capacitance MOSFETs and IGBTs with fast switching speeds.
• Wide Operating Voltage Range: Supports a broad range of input and output voltages, providing flexibility in system design.
• Low Propagation Delay: Offers fast switching speeds, minimizing switching losses and improving efficiency.
• Overlapping Conduction Protection: Prevents shoot-through conditions, ensuring safe and reliable operation.
• Under-Voltage Lockout (UVLO) Protection: Protects the power devices from damage due to low supply voltage.
• Compact Package: Available in a small form factor, making it easy to integrate into space-constrained applications.

Benefits

• Enhanced Safety: The integrated isolation provides a high level of safety by preventing high-voltage transients from propagating to the control circuitry.
• Improved Efficiency: Precise timing control and high drive strength minimize switching losses, resulting in higher overall system efficiency.
• Increased Reliability: Overlapping conduction protection and UVLO protection ensure safe and reliable operation, extending the lifespan of the power devices.
• Simplified Design: Integration of multiple features reduces the need for external components, simplifying system design and reducing board space.
• Optimized Performance: Fast switching speeds and low propagation delay allow for precise control and efficient power transfer.

Additional Details

The SI8710BD-B-ISR operates over a wide temperature range, making it suitable for use in harsh environments. It is designed to meet stringent industry standards for safety and reliability. The device is available in various package options to accommodate different mounting requirements.
