Same model may have multiple batches, images only for reference.

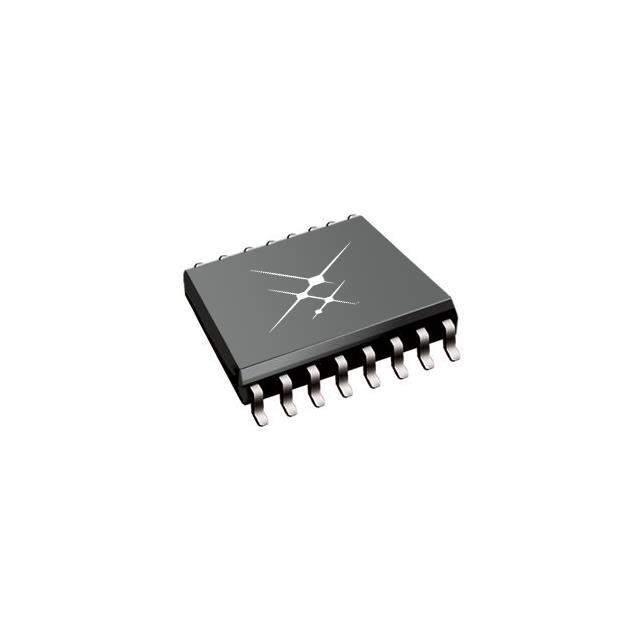

SI8630BC-B-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI8630BC-B-IS1

Part No SI8630BC-B-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description DGTL ISO 3750VRMS 3CH GP 16SOIC / General Purpose Digital Isolator 3750Vrms 3 Channel 150Mbps 35kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)
Datasheet
SI8630BC-B-IS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 3
Inputs - Side 1/Side 2 3/0
Channel Type Unidirectional
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Data Rate 150Mbps
Propagation Delay tpLH / tpHL (Max) 13ns, 13ns
Pulse Width Distortion (Max) 4.5ns
Rise / Fall Time (Typ) 2.5ns, 2.5ns
Voltage - Supply 2.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Base Product Number SI8630
Other Names SI8630BCBIS1,336-2072-5
Standard Package 48
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1244056-SI8630BC-B-IS1
Ultra Librarian 3D Model Ultra Librarian SI8630BC-B-IS1 CAD Model

Description

The SI8630BC-B-IS1 is a digital isolator that is used for general purpose applications.

  • Technology: capacitive coupling technology
  • Data Rate: 150Mbps
  • Type: unidirectional
  • Rise/Fall Time: 2.5ns
  • Channels: Three
  • Voltage Isolation: 3750Vrms
  • Input on the Side 1: 3
  • Input on side 2: 0
  • Common Mode Transient Immunity: 35kV/µs
  • Propagation Delay tpLH/tpHL: 13ns
  • Pulse Width Distortion: 4.5ns
  • Isolated Power: No
  • Voltage Supply: 2.5V to 5.5V
  • Package/Case: 16-SOIC (0.154", 3.90mm width)
  • Device Package: 16-SOIC
  • Operating Temperature Range: -40°C to 125°C
