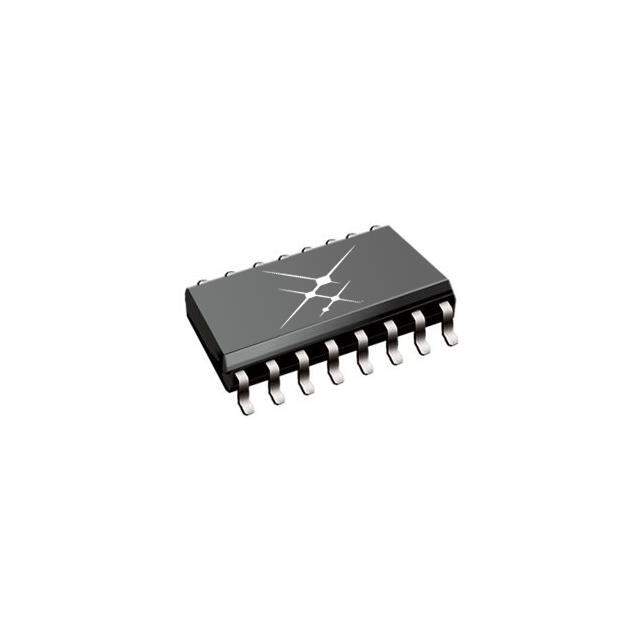

SI8275DBD-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI8275DBD-IS1

Part No SI8275DBD-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 4A 2.5 KV HIGH CMTI DUAL GATE DR / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI8275DBD-IS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Pulse Width Distortion (Max) 8ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.2V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UL, VDE
Base Product Number SI8275
Other Names 336-5947
Standard Package 48
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243740-SI8275DBD-IS1
Ultra Librarian 3D Model Ultra Librarian SI8275DBD-IS1 CAD Model

Description

The Skyworks Solutions Inc. SI8275DBD-IS1 is an isolator gate driver that uses capacitive coupling technology.

  • Channels: Two
  • Package/Case: 16-SOIC (0.154", 3.90mm width)
  • Standard Package: 48 pieces
  • Voltage Isolation: 2500Vrms
  • Voltage Output Supply: 4.2V to 30V
  • ECCN: EAR99 compliant
  • HTSUS Code: 8542.39.0001
  • Manufacturer: Skyworks Solutions Inc.
  • Also Known As: 336-5947 and SI8275
  • Status: Obsolete
