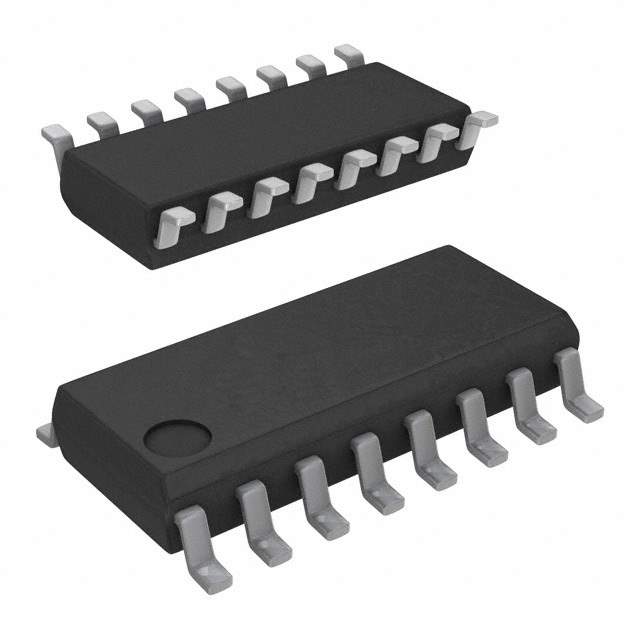

SI8274DB1-IS1R Real Image
Same model may have multiple batches, images only for reference.

SI8274DB1-IS1R

Part No SI8274DB1-IS1R
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 16SOIC / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI8274DB1-IS1R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 150kV/µs
Propagation Delay tpLH / tpHL (Max) 75ns, 60ns
Pulse Width Distortion (Max) 19ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 9.6V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8274
Other Names SI8274DB1-IS1R,336-5553-1,336-5553-2,336-5553-6
Standard Package 2,500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243811-SI8274DB1-IS1R
Ultra Librarian 3D Model Ultra Librarian SI8274DB1-IS1R CAD Model

Description

The SI8274DB1-IS1R is a type of isolator gate driver manufactured by Skyworks Solutions Inc.

  • Voltage Isolation: 2500Vrms
  • Current Output: 1.8A for high and 4A for low output
  • Pulse Width Distortion: 19ns
  • Propagation Delay: 75ns (tpLH) and 60ns (tpHL) max
  • Temperature Range: -40°C to 125°C
