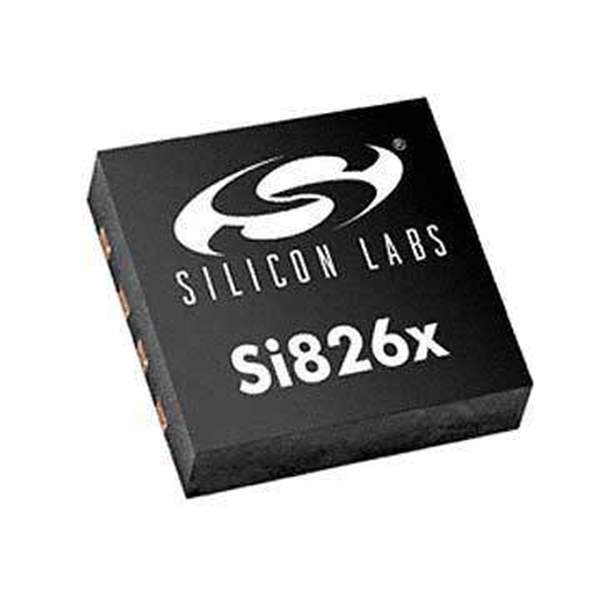

The Skyworks Solutions Inc. 1243632-SI8261BCD-C-IMR is an automotive, AEC-Q100 series isolator that is designed for isolators - gate drivers.

• Package: Tape and Reel (TR)
• Standard Package: 2,500
• Mounting Technology: SMD (SMT)
• Technology: Capacitive Coupling
• Current Output High, Low: 500mA, 1.2A
• Current DC Forward (If) (Max): 30mA
• Voltage Forward (Vf) (Typ): 2.8V (Max)
• Rise/Fall Time (Typ): 5.5ns, 8.5ns
• Channels: Single
• Voltage Isolation: 5000Vrms
• Common Mode Transient Immunity (Min): 35kV/μs
• Propagation Delay tpLH / tpHL (Max): 60ns, 50ns
• Current Peak Output: 4A
• Pulse Width Distortion (Max): 28ns
• Package/Case: 8-VELGA
• Supplier Device Package: 8-LGA (10x12.5)
• Operating Temperature Range: -40°C to 125°C
• ECCN: EAR99
• Voltage Output Supply: 13.5V to 30V
• HTSUS Code: 8542.39.0001
• Status: Obsolete
• Approval: CQC, CSA, UR, and VDE
