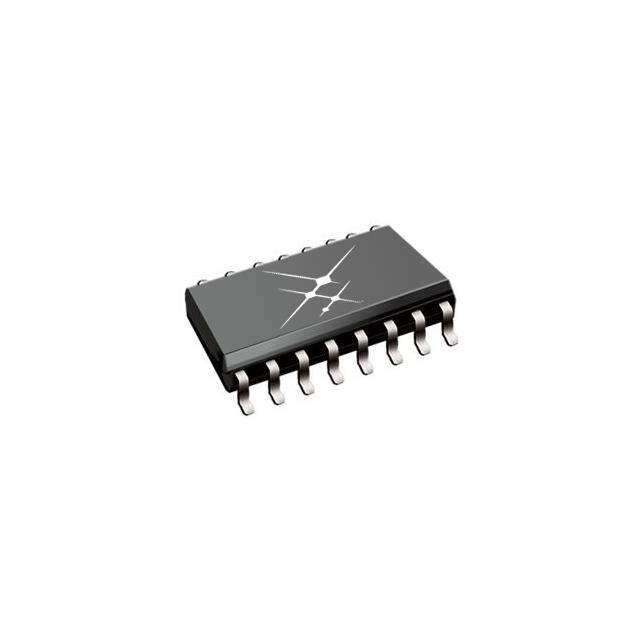

The SI823H1BB-IS1 is an isolated gate driver from Skyworks Solutions Inc. Gate drivers are essential components in power electronics, responsible for switching power transistors like MOSFETs and IGBTs efficiently. This isolated gate driver provides galvanic isolation, separating the control side from the power side, which is critical for safety and noise immunity.

Applications

• Switching Power Supplies: Drives MOSFETs or IGBTs in power supplies, providing isolation.
• Motor Drives: Used in motor control applications for isolating the control signals.
• Inverters: Drives power transistors in inverter circuits for solar, wind, and UPS systems.
• Industrial Automation: Isolates control signals in industrial automation equipment.
• Welding Equipment: Used in welding machines for driving and isolating power transistors.

Features

• Galvanic Isolation: Provides robust electrical isolation between the input and output sides.
• High CMTI: High Common-Mode Transient Immunity, ensuring stable operation in noisy environments.
• Integrated Dead-Time Control: Prevents shoot-through in bridge configurations.
• Precise Timing: Offers accurate and reliable switching performance.
• UVLO Protection: Under-Voltage Lockout protection to prevent damage during power-up and power-down.

Benefits

• Enhanced Safety: Galvanic isolation enhances safety by preventing high-voltage hazards.
• Improved Noise Immunity: High CMTI ensures reliable operation in noisy environments.
• Increased Efficiency: Precise timing and dead-time control optimize switching efficiency.
• Protection: UVLO protection safeguards the driver and power transistors.
• Simplified Design: Integrated features simplify circuit design and reduce component count.

Additional Details

The SI823H1BB-IS1 utilizes capacitive isolation technology to achieve high levels of isolation. It typically supports a wide input voltage range and provides sufficient gate drive strength for various power transistor types. The dead-time control feature is crucial in half-bridge and full-bridge configurations, preventing simultaneous conduction of transistors, which can lead to short circuits and device failure. The CMTI specification indicates the driver's ability to reject common-mode transients, ensuring reliable operation in electrically noisy environments. The datasheet provides comprehensive electrical characteristics, including input voltage range, output drive current, propagation delay, and isolation voltage.
