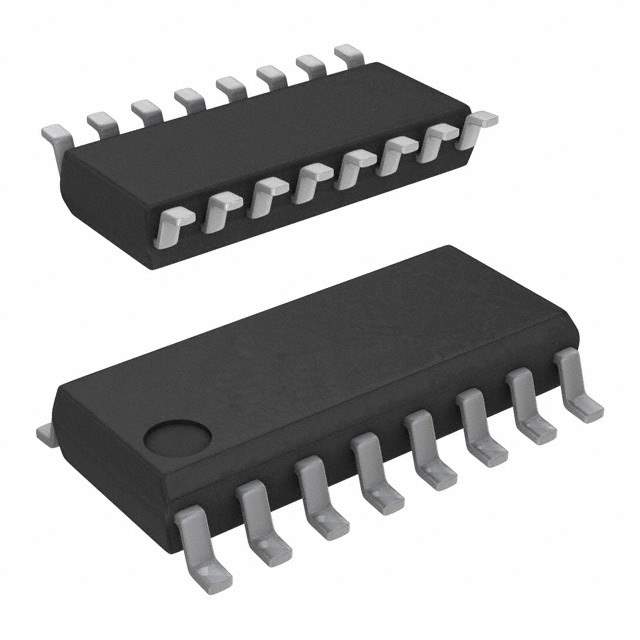

SI82396AB-IS1R Real Image
Same model may have multiple batches, images only for reference.

SI82396AB-IS1R

Part No SI82396AB-IS1R
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DVR 16SOIC / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI82396AB-IS1R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 40ns, 40ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI82396
Standard Package 2,500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243696-SI82396AB-IS1R
Ultra Librarian 3D Model Ultra Librarian SI82396AB-IS1R CAD Model

Description

The SI82396AB-IS1R is a 2-channel capacitive coupling isolator gate driver from Skyworks Solutions Inc.

  • Series: Automotive, AEC-Q100
  • Package: 16-SOIC (0.154", 3.90mm Width)
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 35kV/µs
  • Current Output High: 2A
  • Current Output Low: 4A
  • Peak Output Current: 4A
  • Propagation Delay tpLH / tpHL (Max): 40ns
  • Rise/Fall Time (Typ): 12ns
  • Temperature Range: -40°C to 125°C
  • Pulse Width Distortion (Max): 5.6ns
  • Suitable for: Use in isolators - gate drivers applications
