Same model may have multiple batches, images only for reference.

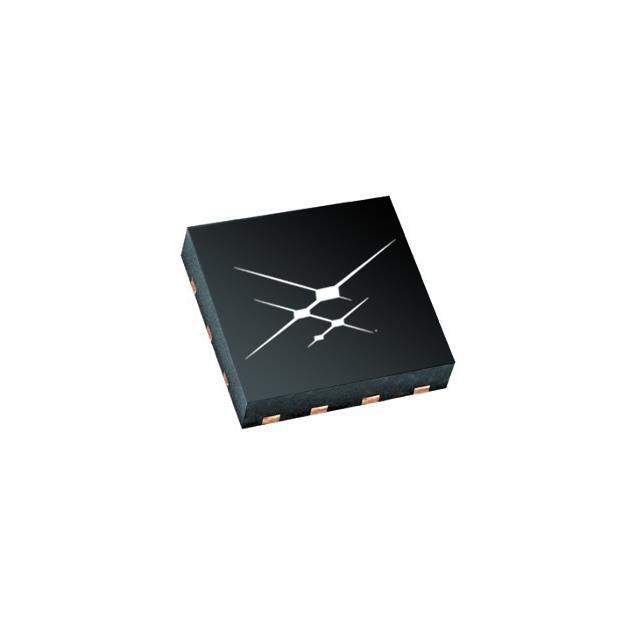

SI8235BB-D-IM1 Real Image
Same model may have multiple batches, images only for reference.

SI8235BB-D-IM1

Part No SI8235BB-D-IM1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DUAL ISOLATED GATE DRIVER / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8235BB-D-IM1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8235
Other Names 336-4269
Standard Package 490
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243569-SI8235BB-D-IM1
Ultra Librarian 3D Model Ultra Librarian SI8235BB-D-IM1 CAD Model

Description

The SI8235BB-D-IM1 is an Isolator IC from Skyworks Solutions Inc. that belongs to the Automotive, AEC-Q100 series.

  • Product Category: Isolators - Gate Drivers IC
  • Package: 14-VDFN
  • Standard Package: 490
  • Mounting Type: SMD (SMT) technology
  • Supplier Device Package: 14-QFN (5x5)
  • ECCN: EAR99
  • Composition: 82 pct.
  • MSL Level: 2 (1 Year)
  • HTSUS Code: 8542.39.0001
  • Base Product Number: SI8235
  • Feature: high-speed, dual-channel isolator that offers low propagation delay and high common-mode transient immunity.
  • Application: Suitable for use in a wide range of applications, including automotive and industrial control systems.
