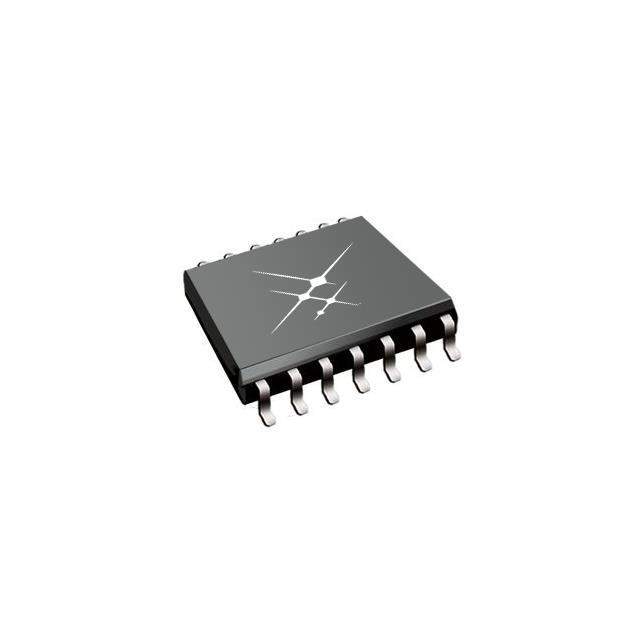

SI8235AD-D-IS3R Real Image
Same model may have multiple batches, images only for reference.

SI8235AD-D-IS3R

Part No SI8235AD-D-IS3R
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DUAL ISOLATED GATE DRIVER, 8 MM / 4A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 14-SOIC
Datasheet
SI8235AD-D-IS3R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-SOIC (0.295", 7.50mm Width)
Supplier Device Package 14-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8235
Standard Package 1,250
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243646-SI8235AD-D-IS3R
Ultra Librarian 3D Model Ultra Librarian SI8235AD-D-IS3R CAD Model

Description

The SI8235AD-D-IS3R is a gate driver isolator designed for automotive applications.

  • Technology: Capacitive Coupling
  • Channels: Two
  • Voltage Isolation: 5000Vrms
  • Common Mode Transient Immunity: 45kV/µs
  • Current Output High: 2A
  • Current Output Low: 4A
  • Maximum Current Peak Output: 4A
  • Propagation Delay tpLH/tpHL: 60ns
  • Pulse Width Distortion: 5.6ns
  • Package/Case: 14-SOIC
  • Temperature Range for Operation: -40°C to 125°C
  • Voltage Output Supply: 6.5V to 24V
  • Approval: CQC, CSA, UR, and VDE
  • Application: Isolators and Gate Drivers
