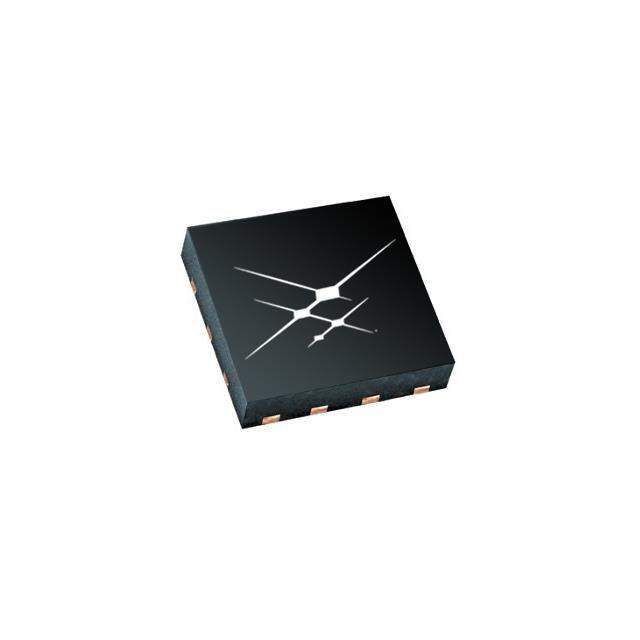

SI8235AB-D-IM1 Real Image
Same model may have multiple batches, images only for reference.

SI8235AB-D-IM1

Part No SI8235AB-D-IM1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DUAL ISOLATED GATE DRIVER / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8235AB-D-IM1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8235
Other Names 336-4268
Standard Package 60
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243568-SI8235AB-D-IM1
Ultra Librarian 3D Model Ultra Librarian SI8235AB-D-IM1 CAD Model

Description

The SI8235AB-D-IM1 is a capacitive coupling isolator with a voltage isolation of 2500Vrms and a common mode transient immunity of 45kV/μs.

  • Current Output High: 2A
  • Current Output Low: 4A
  • Rise Time: 12ns
  • Fall Time: 12ns
  • Number of Channels: 2
  • Package: 14-VDFN
  • Application: isolators - gate drivers
  • AEC-Q100: Yes
  • Manufacturer: Skyworks Solutions Inc.
