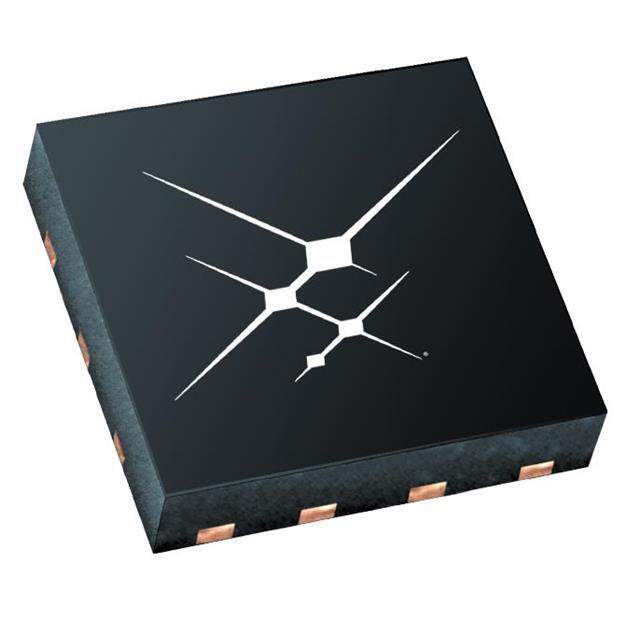

SI8233CB-D-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8233CB-D-IMR

Part No SI8233CB-D-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRIVER 14LGA / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8233CB-D-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 12.2V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8233
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243678-SI8233CB-D-IMR
Ultra Librarian 3D Model Ultra Librarian SI8233CB-D-IMR CAD Model

Description

The SI8233CB-D-IMR isolator is perfect for use in gate drivers and is part of the automotive, AEC-Q100 series.

  • Application: Gate Drivers
  • Series: Automotive, AEC-Q100
  • Technology: Capacitive Coupling
  • Voltage - Isolation: 2500Vrms
  • Current - Output High, Low: 2A, 4A
  • Current - Peak Output: 4A
  • Rise / Fall Time (typ): 12ns, 12ns (max)
  • Propagation Delay tpLH / tpHL (max): 60ns, 60ns
  • Common Mode Transient Immunity (min): 20kV/μs
  • Pulse Width Distortion (max): 5.6ns
  • Package / Case: 14-VFLGA
  • Supplier Device Package: 14-LGA (5x5)
  • Operating Temperature Range: -40°C ~ 125°C
  • Voltage - Output Supply: 12.2V ~ 24V
