Same model may have multiple batches, images only for reference.

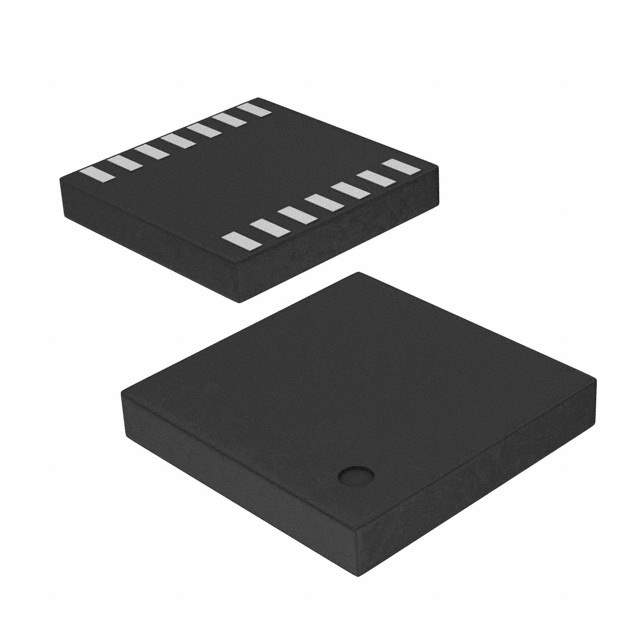

SI8233CB-C-IM Real Image
Same model may have multiple batches, images only for reference.

SI8233CB-C-IM

Part No SI8233CB-C-IM
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRIVER 14LGA / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8233CB-C-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Product Status Obsolete
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 12.2V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Standard Package 60
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243517-SI8233CB-C-IM
Ultra Librarian 3D Model Ultra Librarian SI8233CB-C-IM CAD Model

Description

The SI8233CB-C-IM is a 2-channel capacitive coupling isolator from Skyworks Solutions Inc.

  • Series: Automotive, AEC-Q100 series
  • Package: 14-VFLGA package
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 20kV/μs
  • Maximum Propagation Delay: 60ns
  • Pulse Width Distortion: 5.6ns
  • Current Output: 2A and 4A respectively
  • Operating Temperature: -40°C to 125°C
  • Ideal for Use: Isolators, gate drivers, and other electronic applications
