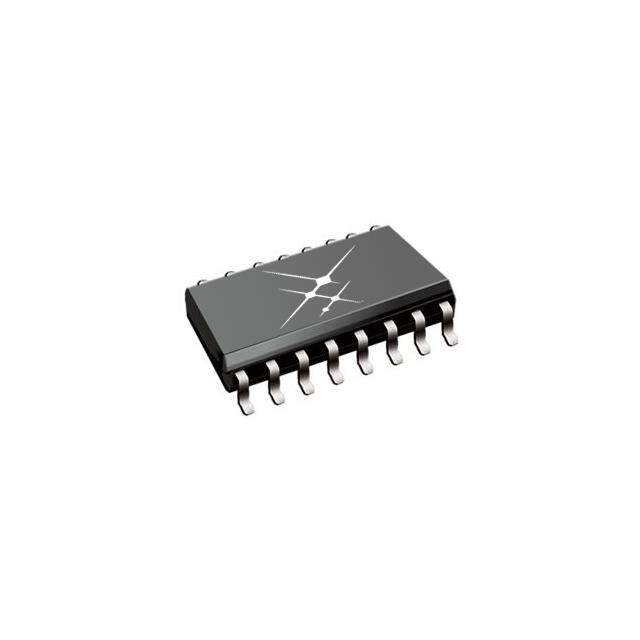

SI8230AB-B-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI8230AB-B-IS1

Part No SI8230AB-B-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 16SOIC / 500mA Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI8230AB-B-IS1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Product Status Obsolete
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 20ns, 20ns (Max)
Current - Output High, Low 250mA, 500mA
Current - Peak Output 500mA
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UR, VDE
Other Names 336-2446-5,SI8230AB-B-IS1
Standard Package 48
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243509-SI8230AB-B-IS1
Ultra Librarian 3D Model Ultra Librarian SI8230AB-B-IS1 CAD Model

Description

The SI8230AB-B-IS1 is an isolator designed for use in gate drivers category.

  • Channels: Two-channel
  • Technology: Capacitive coupling
  • Current Output: 250mA and 500mA
  • Series: Automotive
  • Standard: AEC-Q100 series
  • Win Source Part Number: 1243509-SI8230AB-B-IS1
  • Packaging: Tube
  • Standard Package: 48
  • Mounting: SMD (SMT)
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 20kV/μs
  • Propagation Delay: 60ns
  • Pulse Width Distortion: 5.6ns
  • Manufacturer: Skyworks Solutions Inc.
  • Product Status: Obsolete
  • Approvals: CQC, CSA, UR, VDE
