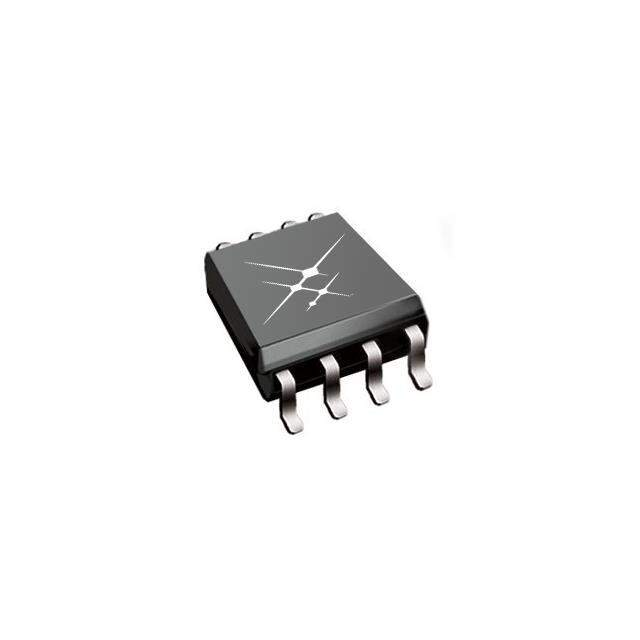

SI8220DB-A-ISR Real Image
Same model may have multiple batches, images only for reference.

SI8220DB-A-ISR

Part No SI8220DB-A-ISR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRIVER 8SOIC / 2.5A Gate Driver Capacitive Coupling 2500Vrms 1 Channel 8-SOIC
Datasheet
SI8220DB-A-ISR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Product Status Obsolete
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 30kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) 60ns, 40ns
Rise / Fall Time (Typ) 20ns, 20ns (Max)
Current - Output High, Low 1.5A, 2.5A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 2.5V (Max)
Current - DC Forward (If) (Max) 30 mA
Voltage - Output Supply 14.8V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Approval Agency CSA, UR, VDE
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243636-SI8220DB-A-ISR
Ultra Librarian 3D Model Ultra Librarian SI8220DB-A-ISR CAD Model

Description

The SI8220DB-A-ISR from Skyworks Solutions Inc. is a 1-channel isolator gate driver that is part of the Isolators - Gate Drivers category.

  • Application: Automotive
  • Certification: AEC-Q100
  • Case/Package: 8-SOIC
  • Voltage Isolation: 2500Vrms
  • Technology: Capacitive Coupling
  • Common Mode Transient Immunity: 30kV/μs (typical)
  • Current Output High: 1.5A
  • Current Output Low: 2.5A
  • Maximum Peak Output Current: 2.5A
  • Maximum Temperature Range: -40°C to 125°C
  • Packaging: Tape & Reel
  • Status: Sufficient supply and demand
