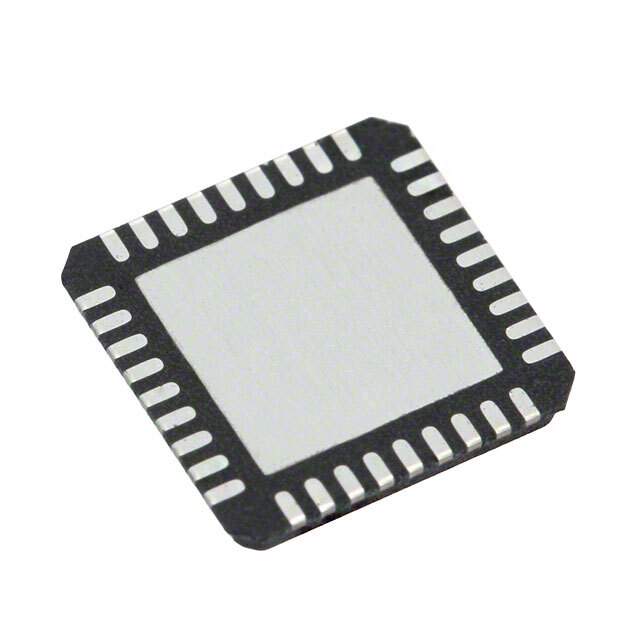

SI5326C-B-GM Real Image
Same model may have multiple batches, images only for reference.

SI5326C-B-GM

Part No SI5326C-B-GM
Manufacturer Skyworks Solutions Inc.
Catalog Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Datasheet
SI5326C-B-GM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr Skyworks Solutions Inc.
Series DSPLL®
Package Tube
Product Status Obsolete
Type Clock Multiplier, Jitter Attenuator
PLL Yes
Input LVCMOS, LVDS, LVPECL, Crystal
Output CML, LVCMOS, LVDS, LVPECL
Number of Circuits 1
Frequency - Max 346MHz
Divider/Multiplier Yes/Yes
Voltage - Supply 1.62V ~ 3.63V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 36-VFQFN Exposed Pad
Supplier Device Package 36-QFN (6x6)
Base Product Number SI5326
Standard Package 50
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1266708-SI5326C-B-GM
Ultra Librarian 3D Model Ultra Librarian SI5326C-B-GM CAD Model

Description

The SI5326C-B-GM is a clock generator from the DSPLL® series manufactured by Skyworks Solutions Inc.

  • Supplier Device Package: 36-QFN (6x6)
  • Frequency Max: 346MHz
  • Voltage Supply: 1.62V to 3.63V
  • Standard Package: 50
  • Mounting: SMD (SMT)
  • Input: LVCMOS, LVDS, LVPECL, Crystal
  • Output: CML, LVCMOS, LVDS, LVPECL
  • Current Rating: 20 A
  • Inductance: 500 µH
  • DC Resistance (DCR): 1.5 Ω
  • Operating Temperature Range: from -40°C to 85°C
  • Status: Obsolete
