Same model may have multiple batches, images only for reference.

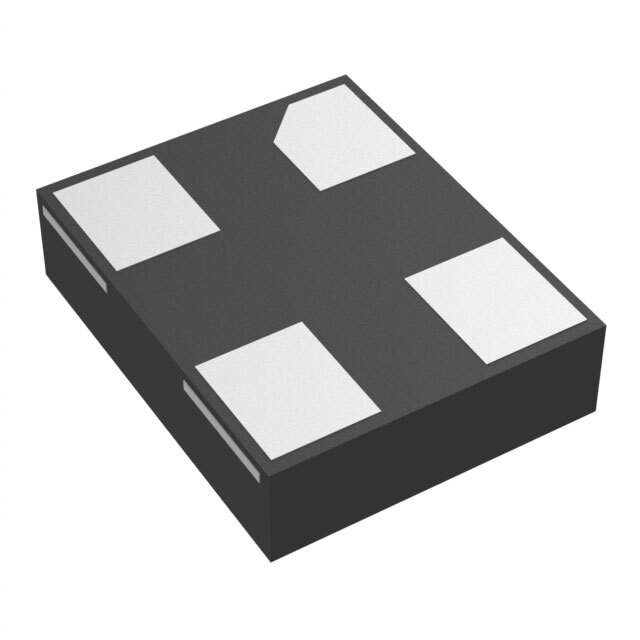

500SAAC100M000ACF Real Image
Same model may have multiple batches, images only for reference.

500SAAC100M000ACF

Part No 500SAAC100M000ACF
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ CMOS SMD / 100 MHz XO (Standard) CMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Skyworks Solutions Inc.
Series Si500S
Package Bag
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating 0°C ~ 70°C
Current - Supply (Max) 24mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 1.9mA
Standard Package 100
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1350697-500SAAC100M000ACF
Ultra Librarian 3D Model Ultra Librarian 500SAAC100M000ACF CAD Model

Description

The Skyworks Solutions Inc. 1350697-500SAAC100M000ACF is an oscillator that comes in a package of a bag.

  • Series: Si500S
  • Type: Standard XO
  • Size: 0.157" L x 0.126" W (4.00mm x 3.20mm)
  • Height Seated (Max): 0.035" (0.90mm)
  • Standard Package: 100
  • Frequency: 100 MHz
  • Function: Standby (Power Down)
  • Output: CMOS
  • Frequency Stability: ±10ppm
  • Current Supply (Max): 24mA
  • Voltage Supply: 3.3V
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, No Lead
  • Operating Temperature: 0°C to 70°C
  • MSL Level: 3 (168 Hours)
  • HTSUS: 8542.39.0001
  • Status: Obsolete
  • Current Supply (Disable) (Max): 1.9mA
