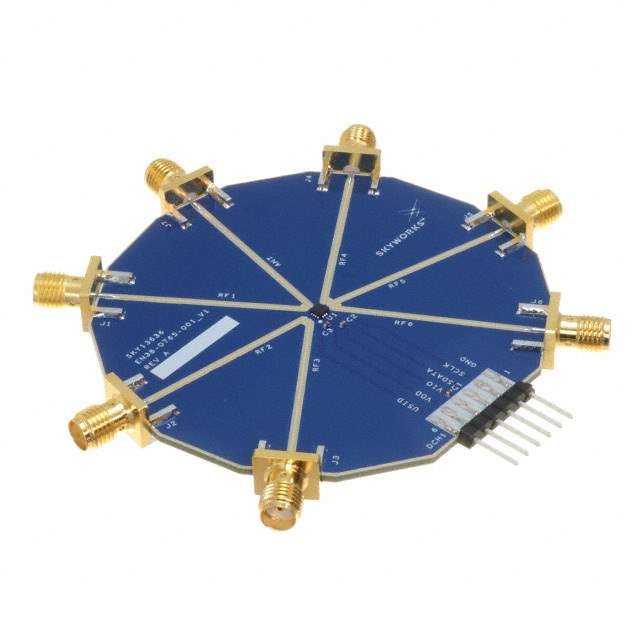

SKY13636-695EK1 Real Image
Same model may have multiple batches, images only for reference.

SKY13636-695EK1

Part No SKY13636-695EK1
Manufacturer Skyworks Solutions Inc.
Catalog RF Evaluation and Development Kits, Boards
Description EVALUATION BOARD/KIT / SKY13636-695LF series Switch, SP6T Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Skyworks Solutions Inc.
Package Box
Type Switch, SP6T
Frequency 700MHz ~ 3.8GHz
For Use With/Related Products SKY13636-695LF
Supplied Contents Board(s)
Base Product Number SKY13636
MSL Level 1 (Unlimited)
ECCN 3B992B
HTSUS 8542.39.0001
Other Names 863-2053
Standard Package 1
Win Source Part Number 1128296-SKY13636-695EK1
Ultra Librarian 3D Model Ultra Librarian SKY13636-695EK1 CAD Model

Description

The SKY13636-695EK1 from Skyworks Solutions Inc. is a switch SP6T development board used for RF evaluation and development kits.

  • Compatibility: SKY13636-695LF
  • Frequency Range: 700MHz to 3.8GHz
  • Standard Package: 1
  • ECCN: 3B992B
  • MSL Level: 1 (unlimited)
  • HTSUS: 8542.39.0001
  • Application: Digital power controller applications.
