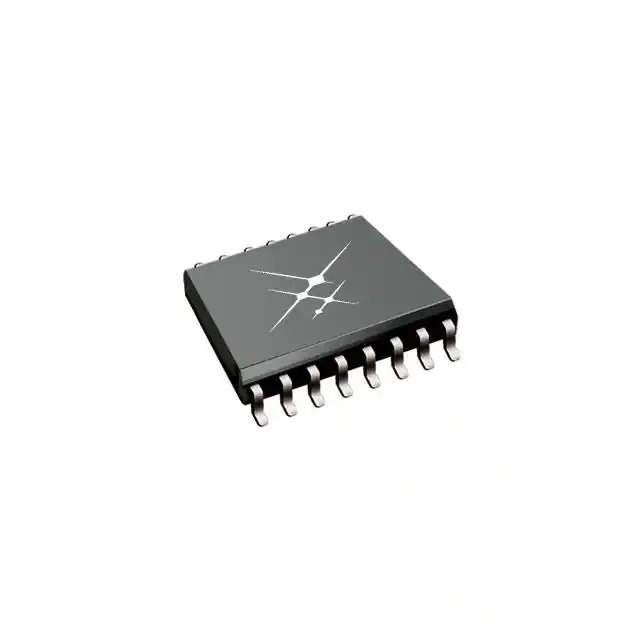

SI8642BD-ASR Real Image
Same model may have multiple batches, images only for reference.

SI8642BD-ASR

Part No SI8642BD-ASR
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description AUTOMOTIVE 5 KV 2 FORWARD & 2 RE
Datasheet
SI8642BD-ASR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Digital Isolators
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100, Si864x
Package Tape & Reel
Product Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power Yes
Number of Channels 4
Inputs - Side 1/Side 2 2/2
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Data Rate 150Mbps
Propagation Delay tpLH / tpHL (Max) 13ns, 13ns
Pulse Width Distortion (Max) 4.5ns
Rise / Fall Time (Typ) 2.5ns, 2.5ns
Voltage - Supply 2.375V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Base Product Number SI8642
Standard Package 1,250 pcs
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1092975-SI8642BD-ASR
Ultra Librarian 3D Model Ultra Librarian SI8642BD-ASR CAD Model

Description

The SI8642BD-ASR is a digital isolator from Skyworks Solutions Inc.

  • Series: Si864x series, automotive applications
  • Technology: Capacitive coupling
  • Data Rate: 150Mbps
  • Channels: Four
  • Voltage Isolation: 5000Vrms
  • Voltage Supply: 2.375V to 5.5V
  • Package: Tape & reel
  • Standard Package Quantity: 1,250 pcs
  • HTSUS: 8542.39.0001
