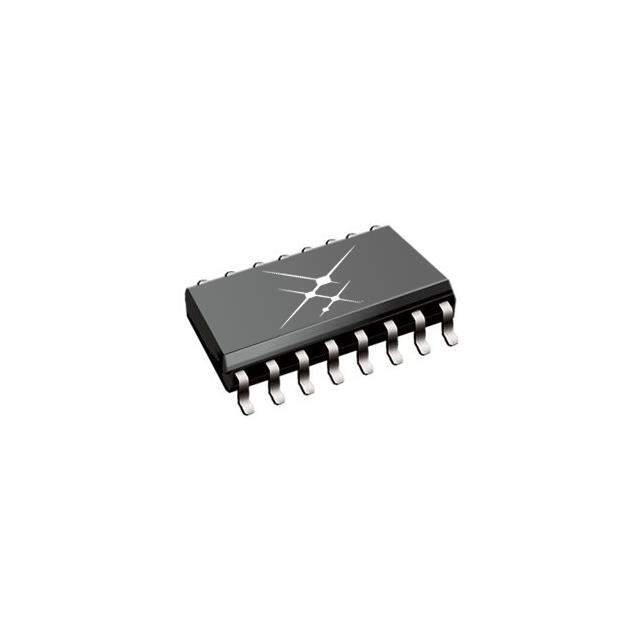

SI8275GBD-IS1

Name: SI8275GBD-IS1
Brand: Skyworks Solutions Inc.
SKU: 1092792
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SI8275GBD-IS1
Manufacturer	Skyworks Solutions Inc.
Catalog	Isolators - Gate Drivers
Description	DGTL ISO 2.5KV GATE DRVR 16SOIC / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet	SI8275GBD-IS1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Isolators - Gate Drivers
Mfr	Skyworks Solutions Inc.
Package	Tube
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	200kV/µs
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Pulse Width Distortion (Max)	8ns
Rise / Fall Time (Typ)	10.5ns, 13.3ns
Current - Output High, Low	1.8A, 4A
Current - Peak Output	4A
Voltage - Output Supply	4.2V ~ 30V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Approval Agency	CQC, CSA, UR, VDE
Base Product Number	SI8275
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	336-3553-5
Standard Package	48
Win Source Part Number	1092792-SI8275GBD-IS1
Ultra Librarian 3D Model	Ultra Librarian SI8275GBD-IS1 CAD Model

Description

The SI8275GBD-IS1 isolator gate driver is presented by Skyworks Solutions Inc..

Mounting: Surface Mount
Package: Tube
Standard Package: 48
Technology: Capacitive Coupling
Channels: 2
Current Output High: 1.8A
Current Output Low: 4A
Voltage Isolation: 2500Vrms
Common Mode Transient Immunity: 200kV/μs
Propagation Delay tpLH/tpHL (Max): 75ns, 75ns
Pulse Width Distortion (Max): 8ns
Device Package: 16-SOIC (0.154 inches, 3.90mm Width)
Operating Temperature Range: -40°C to 125°C
