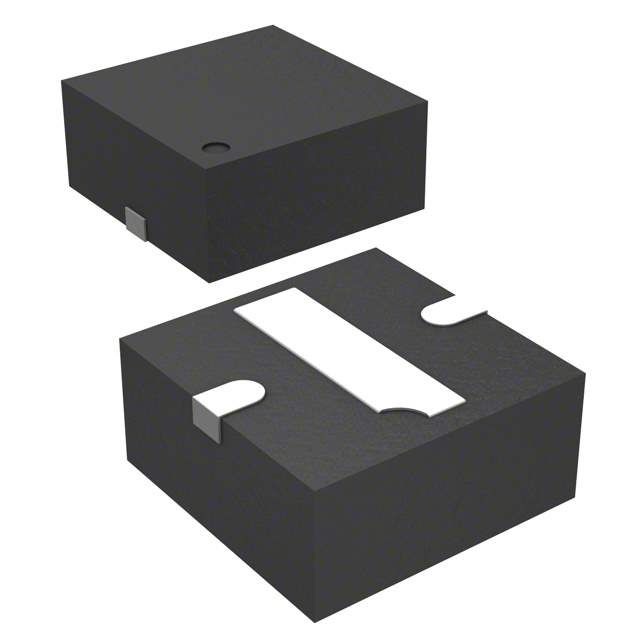

CLA4605-085LF Real Image
Same model may have multiple batches, images only for reference.

CLA4605-085LF

Part No CLA4605-085LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE PIN 60V 1W 3QFN / RF Diode PIN - Single 60V 1.5 A 1 W 3-QFN (2x2)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 60V
Current - Max 1.5 A
Capacitance @ Vr, F 0.45pF @ 6V, 1MHz
Resistance @ If, F 2Ohm @ 10mA, 500MHz
Power Dissipation (Max) 1 W
Temperature Range - Operating 175°C (TJ)
Package / Case 2-VDFN Exposed Pad
Supplier Device Package 3-QFN (2x2)
Base Product Number CLA4605
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 863-1625-1,863-1625-2,863-1625-6
Standard Package 3,000
Win Source Part Number 1169170-CLA4605-085LF
Ultra Librarian 3D Model Ultra Librarian CLA4605-085LF CAD Model

Description

The CLA4605-085LF is a PIN diode designed for RF applications.

  • Maximum Current: 1.5 A
  • Peak Reverse Voltage: 60 V
  • Capacitance: 0.45 pF @ 6 V and 1 MHz
  • Resistance: 2 Ohm @ 10 mA and 500 MHz
  • Package: 2-VDFN Exposed Pad
  • Supplier Device Package: 3-QFN (2x2)
  • Operating Temperature: 175°C (TJ)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Manufacturer: Skyworks Solutions Inc.
