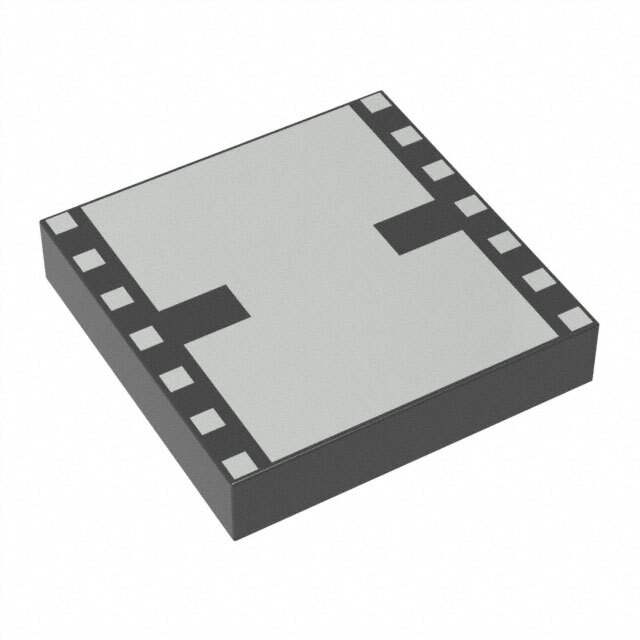

AWB7228P8 Real Image
Same model may have multiple batches, images only for reference.

AWB7228P8

Part No AWB7228P8
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP HSDPA 2.496-2.69GHZ 14SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Frequency 2.496GHz ~ 2.69GHz
P1dB 34dBm
Gain 28dB
RF Type HSDPA, LTE, WCDMA
Voltage - Supply 4.5V
Current - Supply 775mA
Test Frequency 2.69GHz
Mounting Type Surface Mount
Package / Case 14-SMD Module
Supplier Device Package 14-SMD Module
Standard Package 2,500 pcs
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 847628-AWB7228P8
Ultra Librarian 3D Model Ultra Librarian AWB7228P8 CAD Model

Description

The 847628-AWB7228P8 is a high-performance RF Amplifier from Skyworks Solutions Inc.

  • Frequency Range: 2.496GHz to 2.69GHz
  • Application: HSDPA, LTE, WCDMA
  • Gain: 28dB
  • Supply Voltage: 4.5V
  • Current Consumption: 775mA
  • Mounting Type: Surface Mount
  • Package: 14-SMD Module
  • Product Status: Not Obsolete
