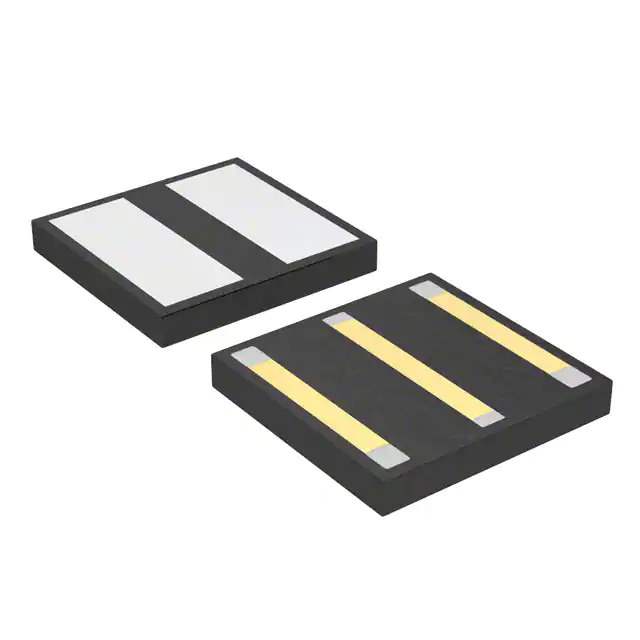

ATN3590-15

Part No ATN3590-15
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 15DB 50OHM DIE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Package Box
Product Status Active
Attenuation Value 15dB
Frequency Range 0 Hz ~ 40 GHz
Power (Watts) 2W
Impedance 50 Ohms
Package / Case Die
Base Product Number ATN3590
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 566791-ATN3590-15
Ultra Librarian 3D Model Ultra Librarian ATN3590-15 CAD Model

Description

The 566791-ATN3590-15 is an attenuator component designed for RF and wireless applications.

  • Impedance: 50 Ohms
  • Power Handling: 2W
  • Frequency Range: 0 Hz to 40 GHz
  • Attenuation: 15dB
  • Package: Box
  • Component Type: Die
  • Manufacturer: Skyworks Solutions Inc.
  • Product Line: Active
