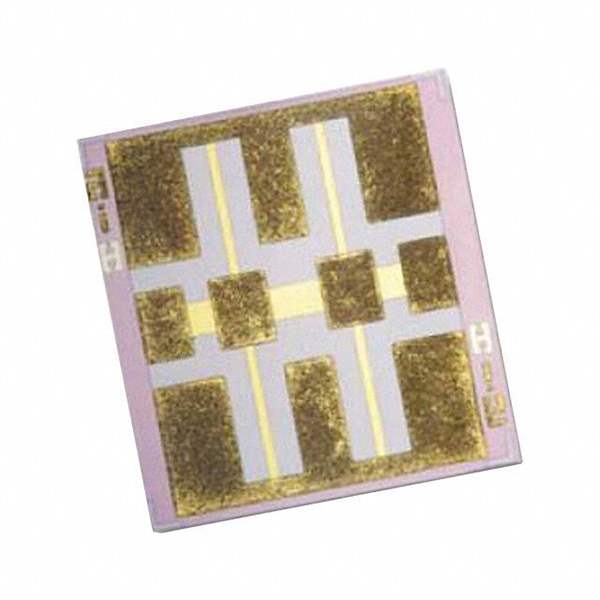

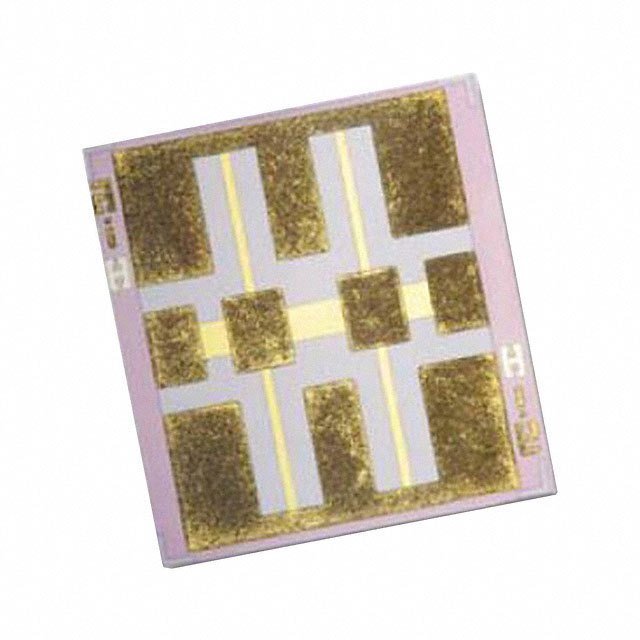

ATN3580-10 Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

ATN3580-10

Part No ATN3580-10
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 10DB MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Series ATN3580
Package Tray
Product Status Active
Attenuation Value 10dB
Frequency Range 100 MHz ~ 40 GHz
Power (Watts) 1W
Package / Case Module
Base Product Number ATN3580
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 808611-ATN3580-10
Ultra Librarian 3D Model Ultra Librarian ATN3580-10 CAD Model

Description

The ATN3580-10 is an RF and wireless attenuator designed for frequency ranges from 100 MHz to 40 GHz.

  • Manufacturer: Skyworks Solutions Inc.
  • Series: ATN3580
  • Package: Tray
  • Standard Package Size: 100 pieces
  • Attenuation: 10dB
  • Power: 1W
  • Applications: Module installations
  • ECCN: EAR99
  • MSL Level: 1
  • HTSUS code: 8542.39.0001
  • Status: Active
