Same model may have multiple batches, images only for reference.

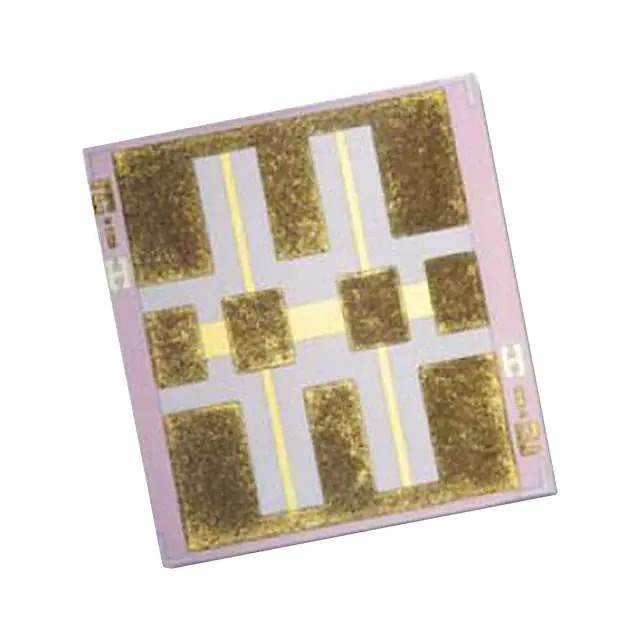

ATN3580-09 Real Image
Same model may have multiple batches, images only for reference.

ATN3580-09

Part No ATN3580-09
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 9DB MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Series ATN3580
Package Tray
Product Status Active
Attenuation Value 9dB
Frequency Range 100 MHz ~ 40 GHz
Power (Watts) 1W
Package / Case Module
Base Product Number ATN3580
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 912116-ATN3580-09
Ultra Librarian 3D Model Ultra Librarian ATN3580-09 CAD Model

Description

The ATN3580-09 RF Attenuator is a high-quality electronic component designed for RF and wireless applications.

  • Category: RF and Wireless
  • Subcategory: Attenuators
  • Package: Tray
  • Standard Package: 100 pieces
  • Power Rating: 1W
  • Frequency Range: 100 MHz to 40 GHz
  • Attenuation Value: 9dB
  • Package/Case: Module
  • Manufacturer: Skyworks Solutions Inc.
  • Status: Active
  • ECCN: EAR99
  • HTSUS Code: 8542.39.0001
