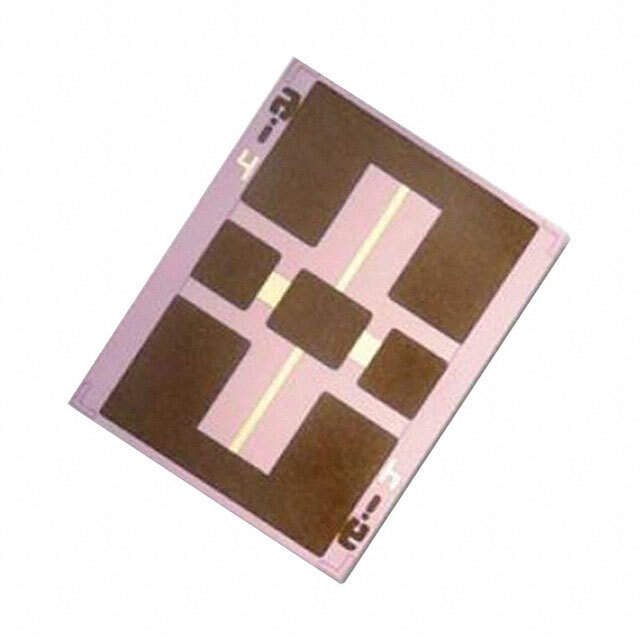

ATN3580-01 Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

ATN3580-01

Part No ATN3580-01
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 1DB MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Series ATN3580
Package Tray
Product Status Active
Attenuation Value 1dB
Frequency Range 100 MHz ~ 40 GHz
Power (Watts) 1W
Package / Case Module
Base Product Number ATN3580
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 709548-ATN3580-01
Ultra Librarian 3D Model Ultra Librarian ATN3580-01 CAD Model

Description

The ATN3580-01 is an attenuator module designed for RF and wireless applications manufactured by Skyworks Solutions Inc.

  • Frequency Range: 100 MHz to 40 GHz
  • Attenuation: 1dB
  • Power Rating: 1W
  • Package: Tray
  • Standard Package: 100 pcs
  • Product Status: Active
  • MSL Level: 1
