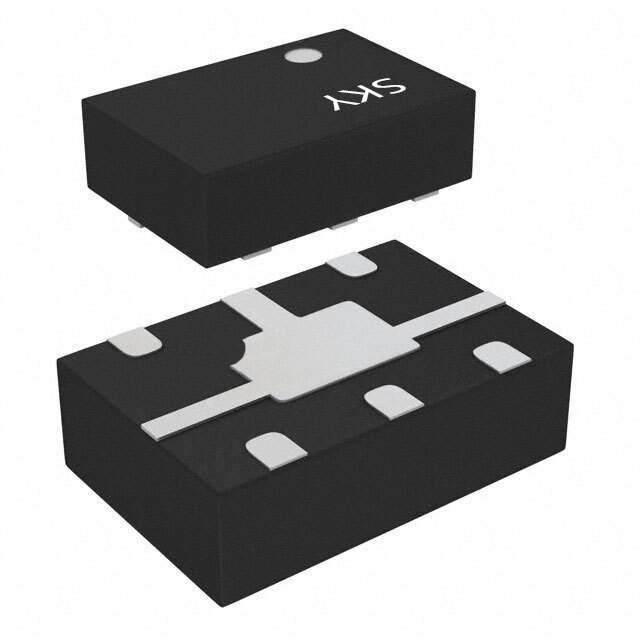

The AS225-313 is a GaAs pHEMT Single Pole Double Throw (SPDT) switch manufactured by Skyworks Solutions Inc. It's designed for use in a variety of RF applications, offering high isolation, low insertion loss, and excellent linearity.

Applications

• Wireless Communication: Used in cellular handsets, WLAN devices, and other wireless communication equipment.
• Test and Measurement Equipment: Switching signals in RF test instruments.
• Automated Test Equipment (ATE): Routing RF signals in automated testing systems.
• Satellite Communication: Switching signals in satellite communication systems.
• Radar Systems: Used in radar receivers and transmitters.

Features

• SPDT Configuration: Single Pole Double Throw switch configuration.
• High Isolation: Provides excellent isolation between the two output ports.
• Low Insertion Loss: Minimizes signal attenuation when the switch is closed.
• High Linearity: Maintains signal integrity with minimal distortion.
• GaAs pHEMT Technology: Utilizes Gallium Arsenide pseudomorphic High Electron Mobility Transistor (pHEMT) technology for high performance.

Benefits

• Improved System Performance: High isolation and low insertion loss enhance signal quality and minimize signal loss.
• Reduced Power Consumption: Low power consumption contributes to energy efficiency.
• Enhanced Linearity: High linearity ensures accurate signal transmission and minimizes distortion.
• Compact Size: Small package size enables compact system designs.
• Versatile Application: Suitable for a wide range of RF switching applications.

Additional Details

The specific technical specifications for the AS225-313 switch, such as its operating frequency range, insertion loss, isolation, switching speed, and power handling capability, can be found in the Skyworks Solutions Inc. datasheet. The switch is typically controlled by a digital control signal. Proper impedance matching is essential to ensure optimal performance. The switch is designed to operate within a specific temperature range. ESD precautions should be taken when handling the device. The switch is typically mounted on a printed circuit board (PCB) using surface mount technology (SMT). Applications might include antenna switching, filter selection, or signal routing.
