Same model may have multiple batches, images only for reference.

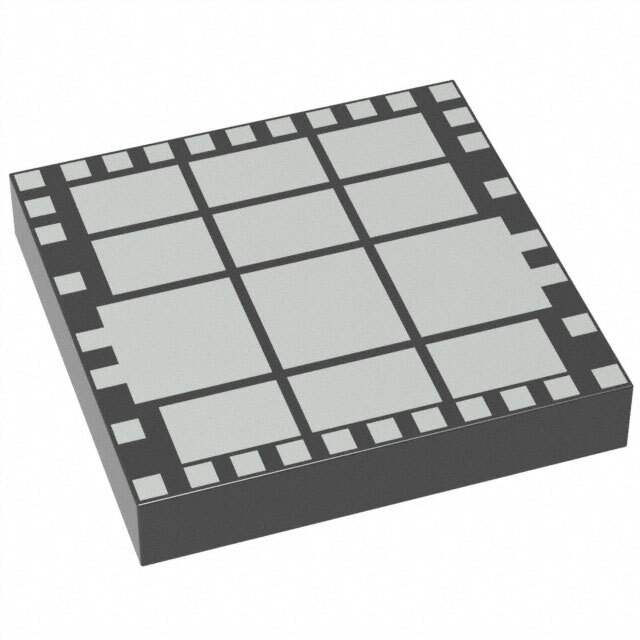

ACA1240 Real Image
Same model may have multiple batches, images only for reference.

ACA1240

Part No ACA1240
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP CATV 50MHZ-1.218GHZ 34SMD / RF Amplifier IC CATV 50MHz ~ 1.218GHz 34-SMD (11x11)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Frequency 50MHz ~ 1.218GHz
Gain 35dB
Noise Figure 4.5dB
RF Type CATV
Voltage - Supply 12V
Current - Supply 500mA
Test Frequency 1.218GHz
Mounting Type Surface Mount
Package / Case 34-SMD Module
Supplier Device Package 34-SMD (11x11)
Standard Package 1,500 pcs
MSL Level 3 (168 Hours)
ECCN OBSOLETE
Win Source Part Number 859236-ACA1240
Ultra Librarian 3D Model Ultra Librarian ACA1240 CAD Model

Description

The RF Amplifier 859236-ACA1240 is a high-performance component designed for RF and wireless applications.

  • Category: RF and Wireless - RF Amplifiers
  • Package: Tape & Reel
  • Application: CATV (Cable Television) systems
  • Test Frequency: 1.218GHz
  • Frequency Range: 50MHz to 1.218GHz
  • Gain: 35dB
  • Noise Figure: 4.5dB
  • Current Supply: 500mA
  • Voltage Supply: 12V
  • Mounting Type: Surface Mountable
  • Package / Case: 34-SMD module
  • Supplier Device Package: 34-SMD (11x11)
  • Product Status: Obsolete
  • MSL Level: 3 (168 Hours)
  • Manufacturer: Skyworks Solutions Inc.
