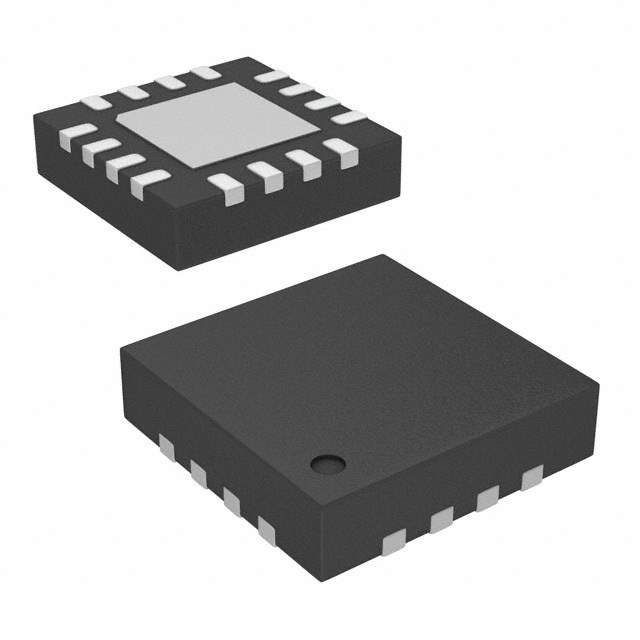

AAT3114ISN-20-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT3114ISN-20-T1

Part No AAT3114ISN-20-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - LED Drivers
Description IC LED DRVR RGLTR DIM 20MA 16QFN
Datasheet
AAT3114ISN-20-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Channel Output Current 20mA
Frequency 600kHz
Dimming S2Cwire
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-QFN (4x4)
Win Source Part Number 076736-AAT3114ISN-20-T1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AAT3114ISN-20-T1 CAD Model

Description

Product Overview

The AAT3114ISN-20-T1 integrates seamlessly into handheld electronics, offering a balance between performance and efficiency. Its advanced charge pump technology ensures steady voltage conversion.

Features and Benefits

  • Adaptable conversion rates: Supports multiple input voltage levels.
  • Compact design: Facilitates easy integration into small devices.
  • Low electromagnetic interference: Minimizes disruptions to device operation.

Applications

  • Smartphones
  • Action Cameras
  • Wearable Technology
  • Electronic Toys

This component is perfect for touch-sensitive devices, providing stable power in fluctuating conditions.
