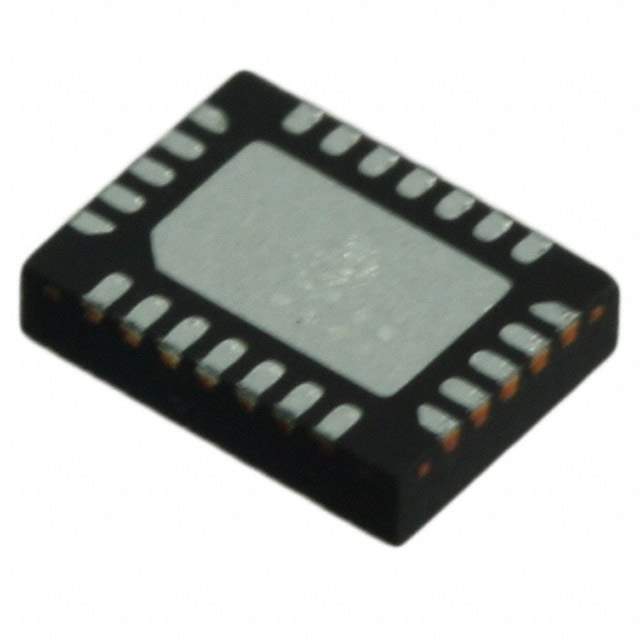

AAT2866IMK-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT2866IMK-T1

Part No AAT2866IMK-T1
Manufacturer Skyworks Solutions Inc.
Catalog Board Mount LED Drivers
Description IC LED DRIVER RGLTR DIM 24TQFN
Datasheet
AAT2866IMK-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Skyworks Solutions Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 8
Voltage Supply MIN 2.7V
Voltage Supply MAX 5.5V
Voltage - Output 5.2V
Output Current per Channel 31mA
Frequency 1MHz
Dimming PWM
Applications Backlight, Camera Flash
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 24-WFQFN Exposed Pad
Manufacturer Package 24-TQFN (3x4)
Win Source Part Number 766861-AAT2866IMK-T1
Popularity Medium
Supply and Demand Status Balance
Family Name AAT2866
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AAT2866IMK-T1 CAD Model

Description

The Skyworks Solutions Inc. AAT2866IMK-T1 is a DC DC regulator that is commonly used in electronic devices.

  • Frequency: 1MHz
  • Outputs: 8
  • Supply and Demand Status: Balanced
  • Operating Temperature: -40°C to 85°C
  • Voltage Output: 5.2V
  • Package: 24-WFQFN Exposed Pad
  • Dimming: PWM
