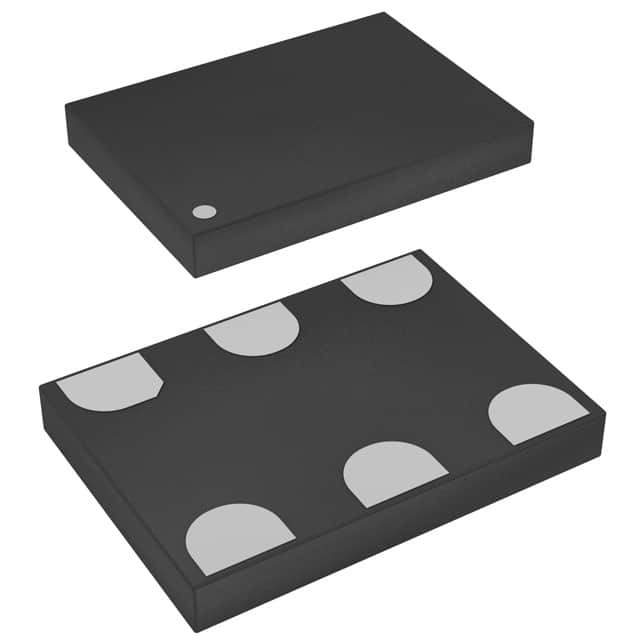

SIT9120AC-2D3-25E100.000000

Part No SIT9120AC-2D3-25E100.000000
Manufacturer SiTIME
Catalog Oscillators
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT9120
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 55mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1314626-SIT9120AC-2D3-25E100.000000
Ultra Librarian 3D Model Ultra Librarian SIT9120AC-2D3-25E100.000000 CAD Model

Description

The SiT9120AC-2D3-25E100.000000 is an XO (Standard) oscillator from SiTime.

  • Frequency: 100 MHz
  • Output: LVDS
  • Frequency Stability: ±50ppm
  • Current Supply: 55mA
  • Voltage Supply: 2.5V
  • Package: 6-SMD, No Lead
  • Temperature Range: -20°C to 70°C
  • Technology: MEMS
