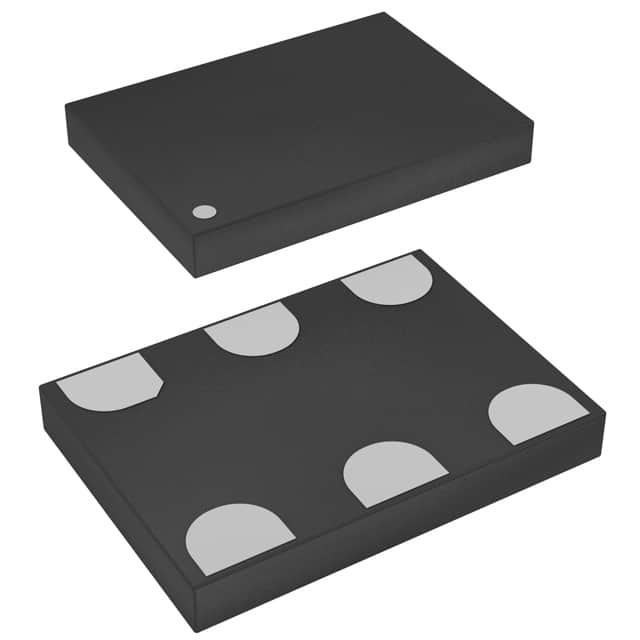

SIT9120AC-2D2-33E155.520000 SiTIME
Same model may have multiple batches, images only for reference.

SIT9120AC-2D2-33E155.520000

Part No SIT9120AC-2D2-33E155.520000
Manufacturer SiTIME
Catalog Oscillators
Datasheet
SIT9120AC-2D2-33E155.520000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT9120
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 155.52 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 55mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1316266-SIT9120AC-2D2-33E155.520000
Ultra Librarian 3D Model Ultra Librarian SIT9120AC-2D2-33E155.520000 CAD Model

Description

SiT9120AC-2D2-33E155.520000 is a crystal oscillator that operates @ a frequency of 155.52 MHz.

  • Mounting: Surface Mount Device
  • Voltage Supply: 3.3V
  • Current Supply: 55mA (maximum)
  • Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Operating Temperature: -20°C to 70°C
  • Manufacturer: SiTime
