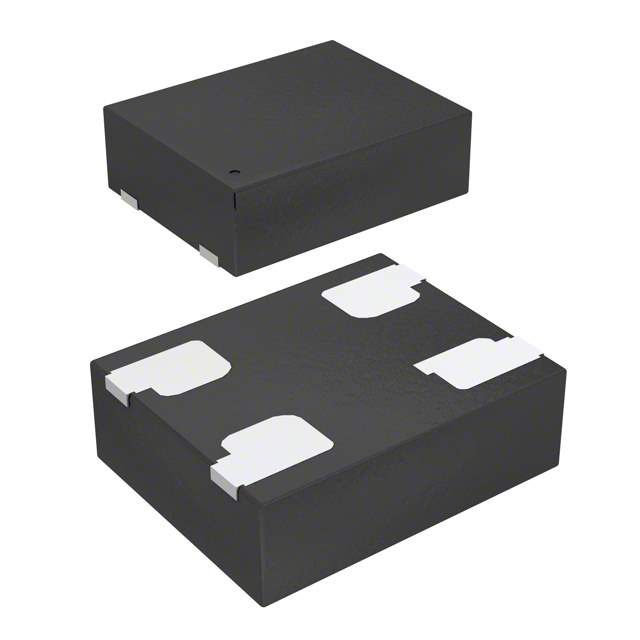

SIT8924AA-12-33E-100.000000E Real Image
Same model may have multiple batches, images only for reference.

SIT8924AA-12-33E-100.000000E

Part No SIT8924AA-12-33E-100.000000E
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 100.0000MHZ LVCMOS / 100 MHz XO (Standard) LVCMOS, LVTTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
SIT8924AA-12-33E-100.000000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT8924
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVCMOS, LVTTL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 125°C
Current - Supply (Max) 4.8mA
Ratings AEC-Q100
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 4.5mA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1351375-SIT8924AA-12-33E-100.000000E
Ultra Librarian 3D Model Ultra Librarian SIT8924AA-12-33E-100.000000E CAD Model

Description

SiT8924AA-12-33E-100.000000E is a crystal oscillator that operates @ a frequency of 100 MHz.

  • Frequency: 100 MHz
  • Mounting Type: Surface Mount
  • Voltage Supply: 3.3V
  • Maximum Current Supply: 4.8mA
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Operating Temperature Range: -40°C to 125°C
