Same model may have multiple batches, images only for reference.

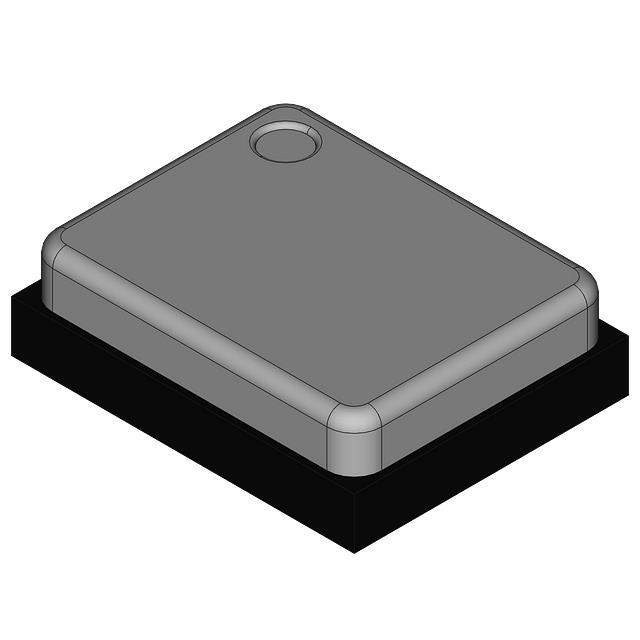

SIT8008AI-13-18E-100.000000E Real Image
Same model may have multiple batches, images only for reference.

SIT8008AI-13-18E-100.000000E

Part No SIT8008AI-13-18E-100.000000E
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 100.0000MHZ H/LVCMOS / 100 MHz XO (Standard) HCMOS, LVCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT8008
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output HCMOS, LVCMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3.9mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 3.8mA
ECCN EAR99
HTSUS 8542.39.0001
Other Names SITSITSIT8008AI-13-18E-100.000000E,2156-SIT8008AI-13-18E-100.000000E
Standard Package 1
Win Source Part Number 1143685-SIT8008AI-13-18E-100.000000E
Ultra Librarian 3D Model Ultra Librarian SIT8008AI-13-18E-100.000000E CAD Model

Description

This is an oscillator that belongs to the SiT8008 series.

  • Win Source Part Number: 1143685-SIT8008AI-13-18E-100.000000E
  • Type: XO (Standard)
  • Package: Bulk
  • Height - Seated (Max): 0.031" (0.80mm)
  • Frequency: 100 MHz
  • Output: HCMOS and LVCMOS
  • Frequency Stability: ±50ppm
  • Current - Supply (Max): 3.9mA
  • Current - Supply (Disable) (Max): 3.8mA
  • Voltage - Supply: 1.8V
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -40°C ~ 85°C
