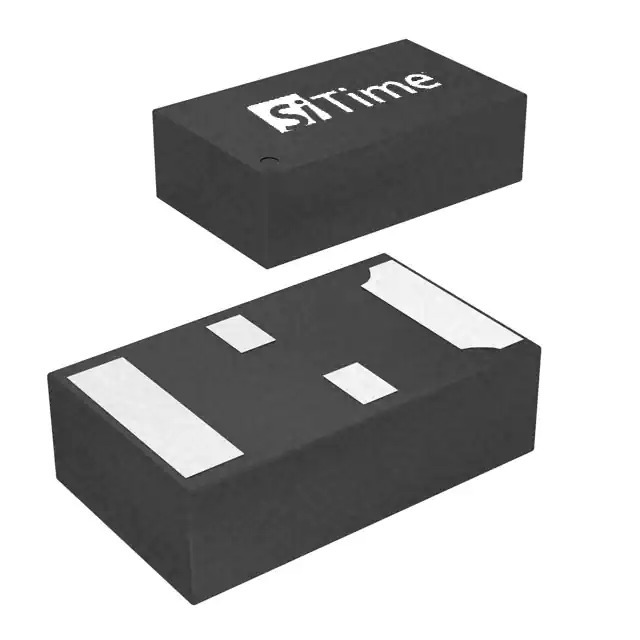

Same model may have multiple batches, images only for reference.
SIT1630AI-H4-DCC-32.768D SiTIME
Same model may have multiple batches, images only for reference.

SIT1630AI-H4-DCC-32.768D

Part No SIT1630AI-H4-DCC-32.768D
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 32.7680KHZ LVCMOS
Datasheet
SIT1630AI-H4-DCC-32.768D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT1630
Package Tape & Reel
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 32.768 kHz
Function -
Output LVCMOS
Voltage - Supply 1.5V ~ 3.63V
Frequency Stability ±100ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 2.2µA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Current - Supply (Disable) (Max) -
Base Product Number SIT1630
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366449-SIT1630AI-H4-DCC-32.768D
Ultra Librarian 3D Model Ultra Librarian SIT1630AI-H4-DCC-32.768D CAD Model

Description

The 1366449-SIT1630AI-H4-DCC-32.768D is a standard XO (crystal oscillator) manufactured by SiTime. It operates in a temperature range of -40°C to 85°C and has a voltage supply of 1.5V to 3.63V.

  • Oscillator Type: Standard XO (Crystal Oscillator)
  • Operating Temperature: -40°C to 85°C
  • Voltage Supply: 1.5V to 3.63V
  • Frequency: 32.768 kHz
  • Frequency Stability: ±100ppm
  • Packaging: Tape & Reel
  • Mounting Type: Surface Mount
  • Product Status: Active
  • ECCN: EAR99
  • Supply Current (Max): 2.2μA
  • Manufacturer: SiTime
