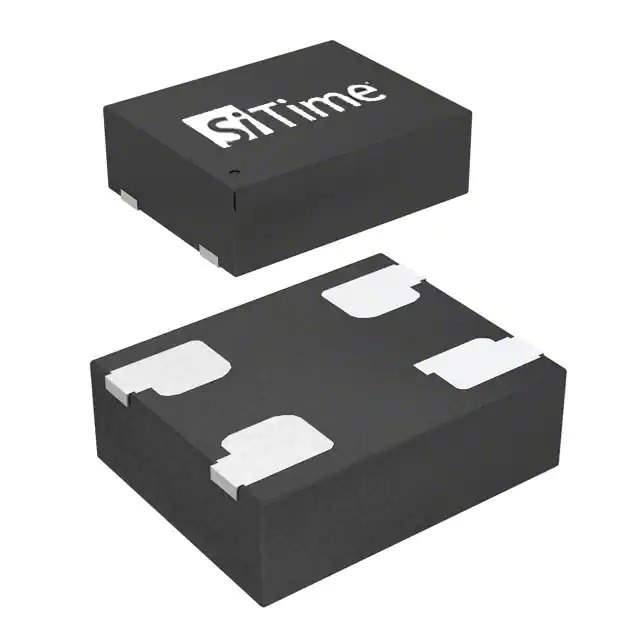

CS00096AC-J1-18E-0032.7707E Real Image
Same model may have multiple batches, images only for reference.

CS00096AC-J1-18E-0032.7707E

Part No CS00096AC-J1-18E-0032.7707E
Manufacturer SiTIME
Catalog Oscillators
Description 32.770KHZ, 20PPM,1P5X0P8 WCSP TR
Datasheet
CS00096AC-J1-18E-0032.7707E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series CS00096
Package Tape & Reel
Product Status Active
Base Resonator MEMS
Type TCXO
Frequency 32.7707 kHz
Output LVCMOS
Voltage - Supply 1.8V
Frequency Stability ±20ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 4.5µA
Mounting Type Surface Mount
Package / Case 4-UFBGA, CSPBGA
Size / Dimension 0.061" L x 0.033" W (1.54mm x 0.84mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number CS00096
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1126658-CS00096AC-J1-18E-0032.7707E
Ultra Librarian 3D Model Ultra Librarian CS00096AC-J1-18E-0032.7707E CAD Model

Description

The CS00096AC-J1-18E-0032.7707E is a TCXO (Temperature Compensated Crystal Oscillator) from SiTime.

  • Mounting Type: Surface Mount
  • Size: 0.061" L x 0.033" W (1.54mm x 0.84mm)
  • Seated Height: 0.024" (0.60mm)
  • Frequency: 32.7707 kHz
  • Frequency Stability: ±20ppm
  • Output: LVCMOS
  • Package: 4-UFBGA, CSPBGA
  • Temperature Range: -20°C to 70°C
  • Power Consumption: 4.5µA
  • Product Status: Active
