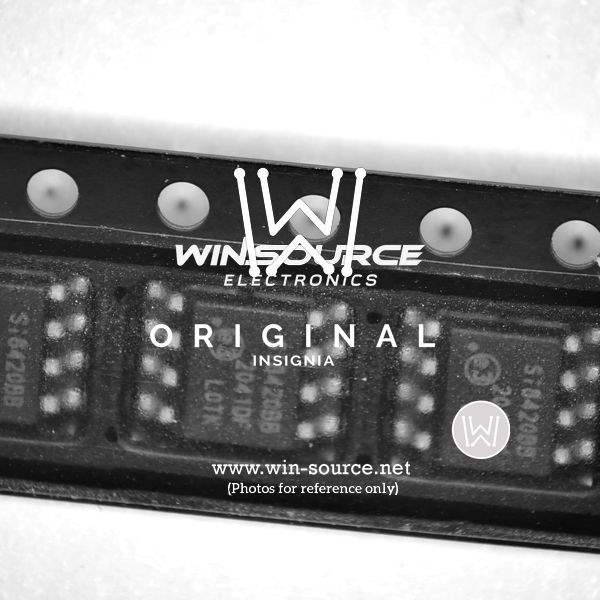

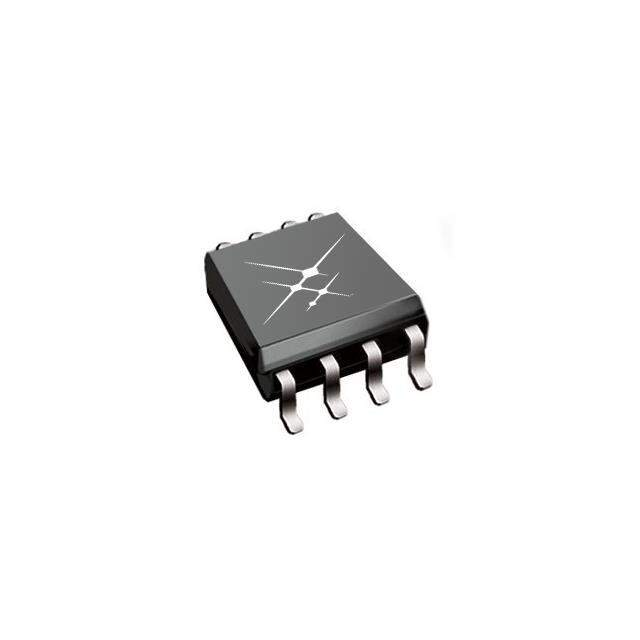

SI8420BB-D-ISR Real Image SI8420BB-D-ISR real image15612 SI8420BB-D-ISR Real Image
Same model may have multiple batches, images only for reference.

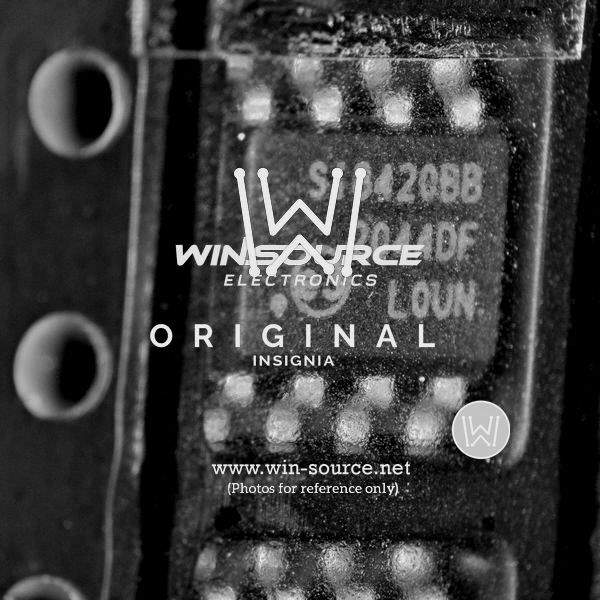

SI8420BB-D-ISR Real Image SI8420BB-D-ISR real image15612 SI8420BB-D-ISR Real Image
SI8420BB-D-ISR Real Image SI8420BB-D-ISR real image15612 SI8420BB-D-ISR Real Image
Same model may have multiple batches, images only for reference.

SI8420BB-D-ISR

Part No SI8420BB-D-ISR
Manufacturer Silicon Labs
Catalog Digital Isolators
Description DGTL ISO 2.5KV GEN PURP 8SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Silicon Labs
Packaging Reel
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Channel Type Unidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs (Typ)
Data Rate 150Mbps
Propagation Delay tpLH / tpHL (Maximum) 9.5ns, 9.5ns
Pulse Width Distortion (Maximum) 2.5ns
Rise / Fall Time (Typ) 3.8ns, 2.8ns
Supply Voltage (V) 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 8-SOIC
Supplier Device Package 8-SOIC
Manufacturer Pack Quantity 2,500
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807194-SI8420BB-D-ISR
Ultra Librarian 3D Model Ultra Librarian SI8420BB-D-ISR CAD Model

Description

The Silicon Labs SI8420BB-D-ISR is a general-purpose isolator.

  • Package: 8-SOIC
  • Mounting Style: SMD
  • Technology: Capacitive coupling
  • Data Rate: 150Mbps
  • Channels: 2-channel
  • Voltage Isolation: 2500Vrms
  • Inputs Side 1: Yes
  • Inputs Side 2: No
  • Common Mode Transient Immunity (min): 25kV/μs (typ)
  • Propagation Delay tpLH / tpHL (maximum): 9.5ns, 9.5ns
  • Pulse Width Distortion (maximum): 2.5ns
  • ECCN: EAR99
  • MSL Level: 2A (4 weeks)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
