Same model may have multiple batches, images only for reference.

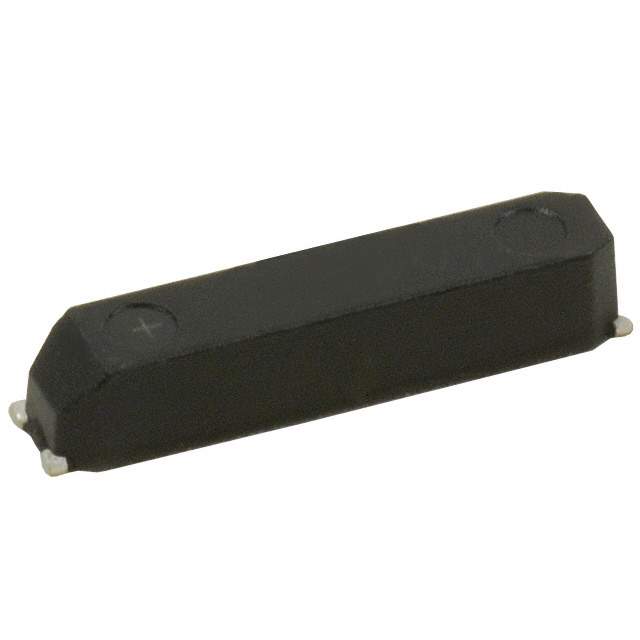

SSPT7F-7PF20-R Real Image
Same model may have multiple batches, images only for reference.

SSPT7F-7PF20-R

Part No SSPT7F-7PF20-R
Manufacturer SII Semiconductor Corporation
Catalog Crystals
Description CRYSTAL 32.7680KHZ 7PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer SII Semiconductor Corporation
Packaging Reel - TR
Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768kHz
Frequency Tolerance ±20ppm
Load Capacitance 7pF
ESR 65 kOhm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.264" L x 0.059" W (6.70mm x 1.50mm)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 118229-SSPT7F-7PF20-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SSPT7F-7PF20-R CAD Model

Description

The SII Semiconductor Corporation kHz Crystal (Tuning Fork) is a high-quality crystal oscillator that is suitable for various electronic applications.

  • Popularity: Medium
  • Supply and Demand: Balanced
  • Application: High frequency stability and low ESR applications
  • Recommended Use: Clocks, watches, and other time-keeping applications
