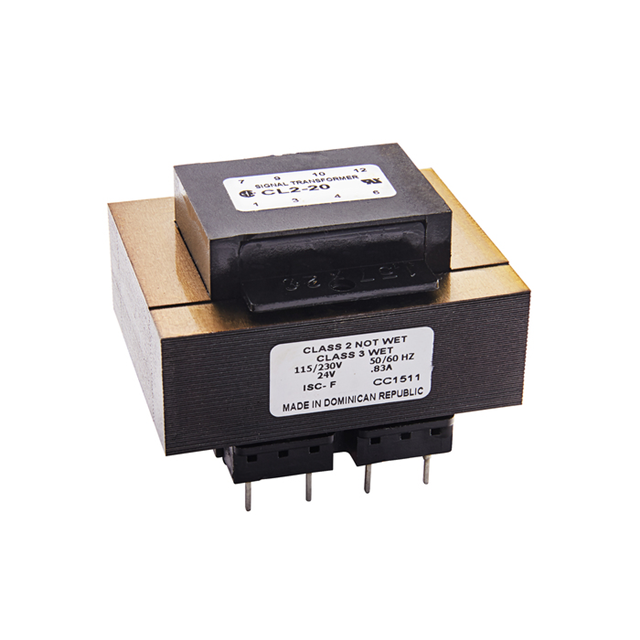

CL2-20-12 Real Image
Same model may have multiple batches, images only for reference.

CL2-20-12

Part No CL2-20-12
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR LAMINATED 20VA TH /
Datasheet
CL2-20-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Signal Transformer
Series CL2
Package Bulk
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) 12V
Current - Output (Max) 1.66A
Primary Winding(s) Dual
Secondary Winding(s) Single
Center Tap No
Power - Max 20VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 57.20mm L x 47.60mm W
Height - Seated (Max) 41.30mm
Voltage - Isolation 4000Vrms
Weight 0.9 lb (408.23 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 595-1887,CL2-20-12-ND
Standard Package 25
Win Source Part Number 1052272-CL2-20-12
Ultra Librarian 3D Model Ultra Librarian CL2-20-12 CAD Model

Description

The CL2-20-12 is a laminated core power transformer from Signal Transformer.

  • Manufacturer: Signal Transformer
  • Type: Laminated Core Power Transformer
  • Maximum Power: 20VA
  • Weight: 0.9 lb (408.23 g)
  • Voltage Isolation: 4000Vrms
  • Primary Winding: Dual
  • Secondary Winding: Single
  • Maximum Current Output: 1.66A
  • Secondary Winding Voltage @ Full Load: 12V
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Dimensions: 57.20mm L x 47.60mm W
  • Package: Bulk
  • Standard Package: 25
