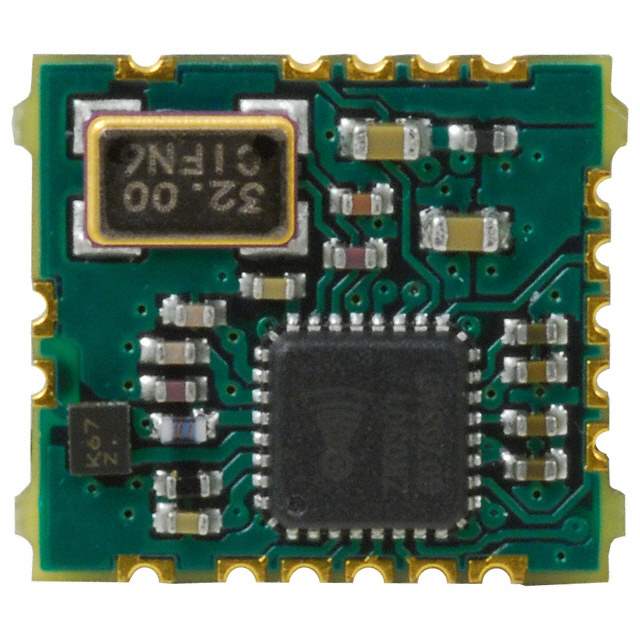

ZM3102AE-CME1

Part No ZM3102AE-CME1
Manufacturer Sigma Designs Inc.
Catalog RF Transceiver Modules
Description RF Transceiver 3.3V T/R / RF TXRX MODULE ISM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Sigma Designs Inc.
Packaging Tray
RF Family/Standard General ISM
Protocol Z-Wave
Modulation FSK
Frequency 868MHz
Data Rate 40kbps
Power - Output -2dBm
Sensitivity -102dBm
Serial Interfaces SPI, UART
Antenna Type Not Included
Memory Size 32kB Flash, 2kB SRAM
Supply Voltage - Operating 2.1 V to 3.6 V
Current - Receiving 23mA
Current - Transmitting 24mA to 36mA
Mounting SMD (SMT)
Temperature Range - Operating -15°C to 85°C
Dimension Module
Win Source Part Number 044126-ZM3102AE-CME1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ZM3102
Ultra Librarian 3D Model Ultra Librarian ZM3102AE-CME1 CAD Model

Description

The Sigma Designs Inc. Its supply and demand status is limited.

  • Recommendation: This component is recommended for use in electronic devices that require high-performance wireless communication.
  • Frequency Range: It features a frequency range of 868MHz
  • Data Rate: a data rate of 40kbps
  • Memory Size: and a memory size of 32kB Flash and 2kB SRAM.
  • Sensitivity: It is also equipped with a high sensitivity of -102dBm
  • Power Output: and a low power output of -2dBm.
  • Ideal Use: This component is ideal for use in smart home devices such as door locks and security systems.
